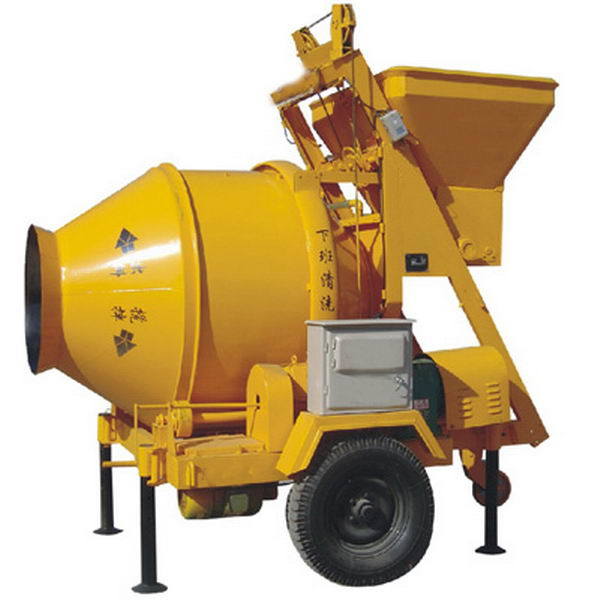

Concrete Mixer Truck (JZC350)

Concrete Mixer Truck(JZC350):
Since the machine is off-bipyramidal reversal discharging mobile concrete mixer, mixing semi-rigid plastic and concrete. Stir mixing tube is transferred, a reversal expected. Each tank can be mixed with 350Lconcrete (after absorption of concrete volume), to produce 10-14 million cubic meters per hour. Applies to construction sites, roads, bridges projects and small and medium-sized concrete structures plant. Mixing fixed, it can dig the hole, the hopper be flush with the ground, feed convenience and reduce labor intensity. The machine is a novel structure, with high efficiency, mixing good quality, light weight, form aesthetic advantages, is a more advanced model.

Overall Size		2766(L)×2140(W)×3000(H)mm
Feeding capacity		560L
Discharging volume		350L
Productivity		10-14m3/h
Roasting speed of stirring shaft		14r/min
Max.diameter of aggregates		60mm
Electric motors	Mixer motor	5.5KW
	Lift motor	5.5KW
	Pump motor	0.55KW

Accuracy of water supply		error≤2%
Tyre standard		6.50-16
Max.transport speed		15km/h
Total mass		1950kg
