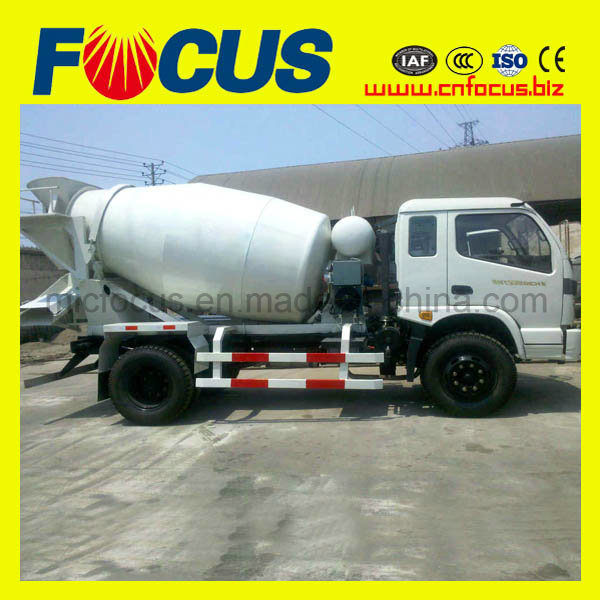

3m3 Concrete Mixer Truck / Concrete Transit Mixer for Sale

3m3 Concrete Mixer Truck / Concrete Transit Mixer for Sale

Why would our clients choose FOCUS concretemixer truck ?
>HINO chassis are available in FOCUSmini concretemixer truck;
>International famous brand hydraulic drive fits are adopted in ourconcrete mixer truck;
>Integral type oil tank, oil cooler and electrical fan are adopted with simple and reliable system;
>Multi-points control system enables theminibeton truckoperation to be easier, safer and more comfortable;
>Air pssure water supply system with large capacity water tank.



What are the main features of FOCUS concretemixer truck ?
>Oil tank and radiator are imported top brand combination with temperature control switch and vacuum meter while oil change and maintenance are easily realized for ourconcretemixer truck.
>Pump, motor and reducer inconcretemixer trucksare all original imported AMERICA static pssure driving system with big driving torque and high efficiency.
>imported hose and connector are separately from GERMANY EMB and ITALY MANULI.
>Hose buckling device is totally from GERMANY HYDAC.
>Stirring vat auto-welding improvesconcrete mixer truckproduction efficiency and makes welding quality finer.
>Tri-axial design and three-section double logarithm helix surface design can ensure concrete speedy feeding and discharge and low surplus rate in ourconcrete mixer truck.
>Fault indicator for theconcretemixer truckcan check all welding seams of stirring vat to ensure good welding quality after it's being welded by auto-welding machine.
>Truck frame adopts tri-axial lineation machining, and adopts laser check to ensure an accurate installation position.


FOCUSconcrete mixer truck technical data:

Model		8m³	9m³	10m³	12m³	14³
Truck	Chassis	HINO	HINO	HINO	HOWO	HOWO
	Length(mm)	8550	9200	9800	10150	10150
	Width(mm)	2490	2490	2495	2496	2496
	Height(mm)	3800	3800	3830	3900	3960
	Weight(kg)	25000	25000	31000	31000	31000
	Load weight(kg)	12600	13000	15650	16370	16700
	Max.speed(kg/h)	75	72	90	90	50
	Oil consumption(L/100km)	32	34	38	38	38
Engine	Engine model	WD615.69
	Engine type	6-cylinder direct injection diesel engine with water cooling
	Engine power(kg)	247(2200r/min)		247(2000r/min)
	Max.torque(N.M)	1250(1600r/min)
Working device	Drum volume(m³)	12.8	14.7	17.05	19.65	20.1
	Mixing volume(m³)	8	9	10	12	14

Model		3m3	4m3	6m3
Tuck	Chassis	FOTON /HOWO	FOTON /HOWO	FOTON /HOWO
	Length(mm)	6765	7705	8715
	Width(mm)	2499	2500	2496
	Height(mm)	3420	3700	3850
	Weight(kg)	15990	18570	25000
	Load weight(kg)	7805	9860	11770
	Max.speed(kg/h)	80	80	90
Engine	Engine model	YC4D130-33	YC6J190-33	WD615.69
Working device	Drum volume(m³)	5.05	6.15	8.7
	Mixing volume(m³)	3	4	6
	Drum rotation(r/min)	0-12	0-12	0-12
	Discharge speed(m³/min)	≥3	≥3	≥3
	Surplus rate(%)	<0.5	<0.5	<0.5
	Water tank vol.(L)	400	400	400
