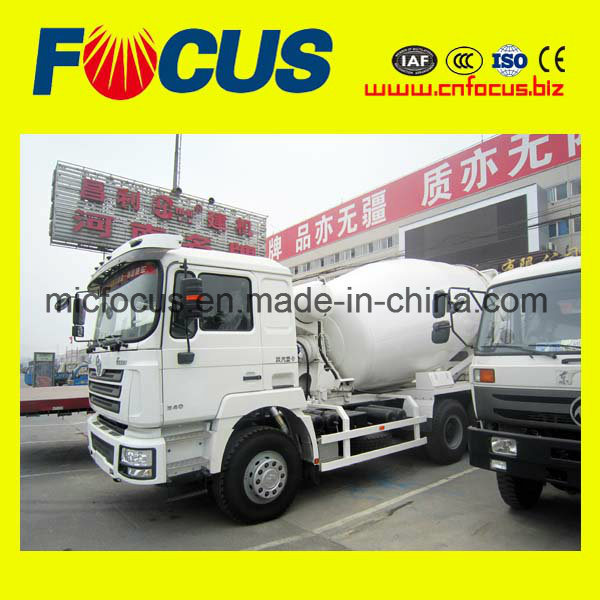

4cbm Rhd Concrete Mixer Truck

4cbm Rhd Concrete Mixer Truck

Why would our clients choose FOCUS concrete mixer truck?
1. HINO or other chassis are available in FOCUS concrete mixer truck;
2. International famous brand hydraulic drive fits are adopted in our Concrete mixer truck;
3. Integral type oil tank, oil cooler and electrical fan are adopted with simple and reliable system;
4. Multi-points control system enables the concrete mixer truck operation to be easier, safer and more comfortable;



What are the main features of FOCUS concrete mixer truck?
1. Pump, motor and reducer in FOCUS concrete mixer truck are all original imported AMERICA static pssure driving system with big driving torque and high efficiency.
2. imported hose and connector are separately from GERMANY EMB and ITALY MANULI.
3. Hose buckling device is totally from GERMANY HYDAC.
4. Stirring vat auto-welding improves FOCUS concrete mixer truck production efficiency and makes welding quality finer.
5. Truck frame adopts tri-axial lineation machining, and adopts laser check to ensure an accurate installation position.


Our concrete mixer truck are being purchased, installed and operated all over the world:

Model		8m ³	9m ³	10m ³	12m ³	14 ³
Tuck	Chassis	HINO	STEYR	HINO	HOWO	HOWO
	Length(mm)	8550	9200	9800	10150	10150
	Width(mm)	2490	2490	2495	2496	2496
	Height(mm)	3800	3800	3830	3900	3960
	Weight(kg)	25000	25000	31000	31000	31000
	Load weight(kg)	12600	13000	15650	16370	16700
	Max.speed(kg/h)	75	72	90	90	50
	Oil consumption(L/100km)	32	34	38	38	38
Engine	Engine model	WD615.69
	Engine type	6-cylinder direct injection diesel engine with water cooling
	Engine power(KW)	247(2200r/min)		247(2000r/min)
	Max.torque(N.M)	1250(1600r/min)
Working device	Drum volume(m³)	12.8	14.7	17.05	19.65	20.1
	Mixing volume(m³)	8	9	10	12	14
	Drum rotation(r/min)	0-14
	Discharge speed(m³/min)	≥3
	Slump(m)	100-230
	Surplus rate(%)	less than 1
	Water tank vol.(L)	400
