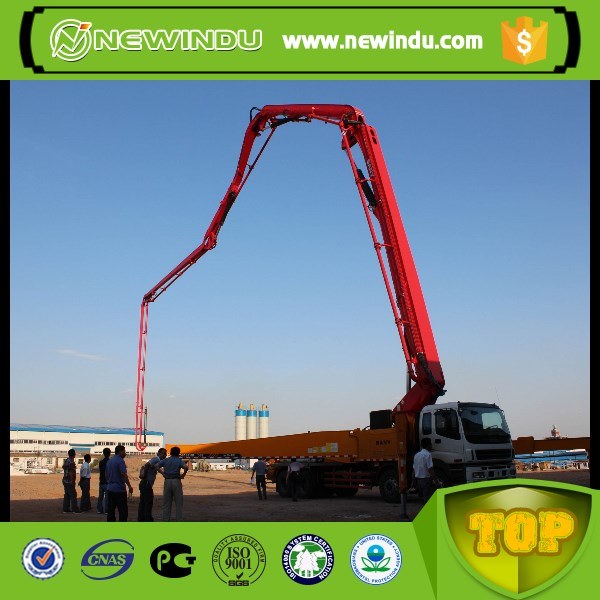

China new Concrete Mixer with Pump Truck Machine SYG5418THB 53
Feature
One Button Stabilization Technology
The one button stabilization technology quickly dampens any boom movement resulting from repositioning the boom. This allows pcise positioning of the end hose.
Boom Anti Vibration Technology
The boom anti vibration technology reduces vibration during pumping by 50% allowing less movement and greater control of the end hose.
Energy Saving Technology
With cycle times of up to 29 per minute (at 12MPa), pump efficiency is increased up to 25% while fuel consumption is decreased by up to 10%.
Anti Overswing Technology
By adopting our new swing brake technology, the boom's overswing amplitude is reduced by 60%
Parameters
Length
13850 mm
Width
2500 mm
Height
4000 mm
Empty weight
42500 kg
Boom & Outrigger
Vertical reach
53.5 m
Horizontal reach
48.5 m
Reach depth
34 m
Unfolding reach
15.2 m
1st section-Length
11390 mm
1st section-Articulation
90°
2nd section-Length
9230 mm
2nd section-Articulation
180°
3rd section-Length
8750 mm
3rd section-Articulation
180°
4th section-Length
9845 mm
4th section-Articulation
240°
5th section-Length
6730 mm
5th section-Articulation
220°
6th section-Length
3350 mm
6th section-Articulation
110°
Rotation
±360 º
Outrigger spad L-R-Front
9470 mm
Outrigger spad L-R-Rear
12680 mm
Pumping System
Output (Low/High-pssure)
180/125 m³/h
Pressure (Low/High-pssure)
8.3/12 Mpa
Max. strokes per minute (Low/High-pssure)
29/19 times/min
Delivery cylinder diameter
260 mm
Stroke length
2100 mm
Hydraulic system
Open
Hydraulic system pssure
32 Mpa
Hydraulic tank capacity
680 L
Water tank capacity
620 L
Pipe size
125 mm
End hose length
3 m
End hose diameter
125 mm
Engine model
OM501LA./3
Engine power
300/1800 kW/rpm
Emissions
Tier / Tier III
Fuel tank capacity
400 L
Displacement
11.946 L
Max.speed
80 km/h
Brake distance
≤10/30 m/km/h
