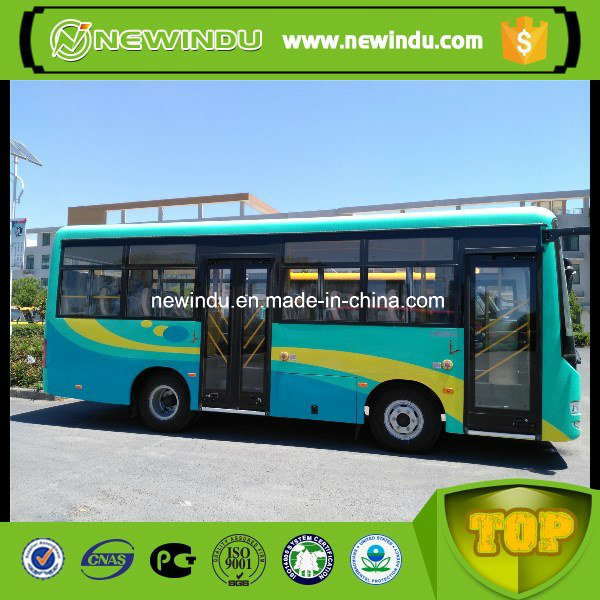

Shaolin 37-40seats 8.4m Front Engine Bus

Shaolin 37-40seats 8.4m front engine bus

Smart and magnificent design
This model is equipped flexible control system with comfortable large space which provide aincomparable experience during driving. Insist the principle of cost efficient, spare parts commonality effectively reduce the use and maintenance cost.
TECHNICAL data:

ITEM		SLG6840C3E
DIMENSION	LENGTH×WIDTH×HEIGHT(MM)	8440×2450×3350
	Tread F(MM)	1950
	Tread R(MM)	1800
	WHEELbase (MM)	4000
WEIGHT	TOTAL MASS (KG)	9800
PERFORMANCE	MIN. VEHICLE TURNING CIRCLE (M)	16512
	MAX. SPEED (KM/H)	100
	ANGLE (APP/DEP)	13/10
Max SEAT CAPACITY		37-40 seats
frameWORK		STRAIGHT BEAM
ENGINE	MODEL	EURO 2CUMMINS ENGINE EQB160-20/118KW EURO 2YC4E150-20/110KW EURO 3CUMMINS ENGINE ISDE 160-30/118KW EURO 3YC4E160-30/118KW
	TYPE	4 CYLINDER IN-LINE
	RATED-POWER (KW/R/MIN)	118KW
	MAX. TORQUE (N.M)	600/600/600
	EMISSION STANDARD	EURO II/EURO III
	FUEL TYPE	DIESEL
CLUTCH	TYPE	SINGLE PLATE DRY CLUCH
	CLUTCH BOOST	WITHPUMP
TRANSMISSION	MODEL	ZF TECHNOLOGY QIJIANG QJ5S600
	MAX. TORQUE	600
	SHIFTS	5 SPEED MANUAL/6 SPEED MANUAL
	ConTROL SYSTEMS	FLEXIBLESHAFT
FRONT AXLE		4.2T
REAR AXLE		6.8T
BRAKING SYSTEM	STEERING	POWER STEERING
	SERVICE BRAKE	DUAL-CIRCUIT AIR BRAKING SYSTEM
	PARKING BRAKE	Diaphragm spring brake
	F/R BRAKING DIA.	Ф400
	F/R BRAKING SHOE Width	130/155
SUSPENSION STYLE		STEEL LEAF SPRING
TYRE		8.25-20
OIL TANK CAPACITY		135L

------------------
