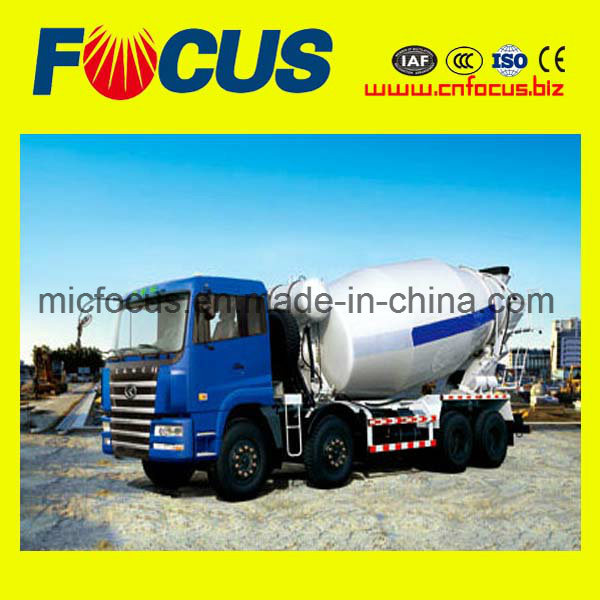

16cbm Concrete Batching Truck/Cart-Away Concrete Mix Truck/HOWO Mixer Truck

16cbm Concrete Batching Truck/Concrete Mix Truck/HOWO Mixer Truck (HDT Series)

FOCUSConCRETE BATCHING TRUCK/ConCRETE MIX TRUCK/HOWO MIXER TRUCK:1.HINO,HOWO chassis available; 2.Germany ZFP reducer, 12 months warranty;3.ISO and CE certified 8x4/6x4concete batching truck.



Why would our clients choose FOCUS 8x4/6x4 HOWO mixer truck?
1. HINO or other chassis are available in FOCUS concrete batchingtruck;
2. International famous brand hydraulic drive fits are adopted in ourmix truck;
3. Integral type oil tank, oil cooler and electrical fan are adopted with simple and reliable system;
4. Multi-points control system enables the concrete mix truck operation to be easier, safer and more comfortable;


What are the main features of FOCUS 8x4/6x4 concrete batching truck?
1.Pump, motor and reducer in FOCUS 8x4/6x4 concrete mix trucks are all original imported AMERICA static pssure driving system with big driving torque and high efficiency.
2.imported hose and connector are separately from GERMANY EMB and ITALY MANULI.
3.Hose buckling device is totally from GERMANY HYDAC.
4.Stirring vat auto-welding improves FOCUS concrete batching truckproduction efficiency and makes welding quality finer.
5.Truck frame adopts tri-axial lineation machining, and adopts laser check to ensure an accurate installation position.

Thanks for visiting, by the time you are paying attention to us, our concrete batching trucksare being delivered /distributed to the world everyday - it'll be such a great honor if you can join us:

Model		8m³	9m³	10m³	12m³	14³
Tuck	Chassis	HINO	STEYR	HINO	HOWO	HOWO
	Length(mm)	8550	9200	9800	10150	10150
	Width(mm)	2490	2490	2495	2496	2496
	Height(mm)	3800	3800	3830	3900	3960
	Weight(kg)	25000	25000	31000	31000	31000
	Load weight(kg)	12600	13000	15650	16370	16700
	Max.speed(kg/h)	75	72	90	90	50
	Oil consumption(L/100km)	32	34	38	38	38
Engine	Engine model	WD615.69
	Engine type	6-cylinder direct injection diesel engine with water cooling
	Engine power(KW)	247(2200r/min)		247(2000r/min)
	Max.torque(N.M)	1250(1600r/min)
Working device	Drum volume(m³)	12.8	14.7	17.05	19.65	20.1
	Mixing volume(m³)	8	9	10	12	14
	Drum rotation(r/min)	0-14
	Discharge speed(m³/min)	≥3
	Slump(m)	100-230
	Surplus rate(%)	<1
	Water tank vol.(L)	400
