Detailed Description

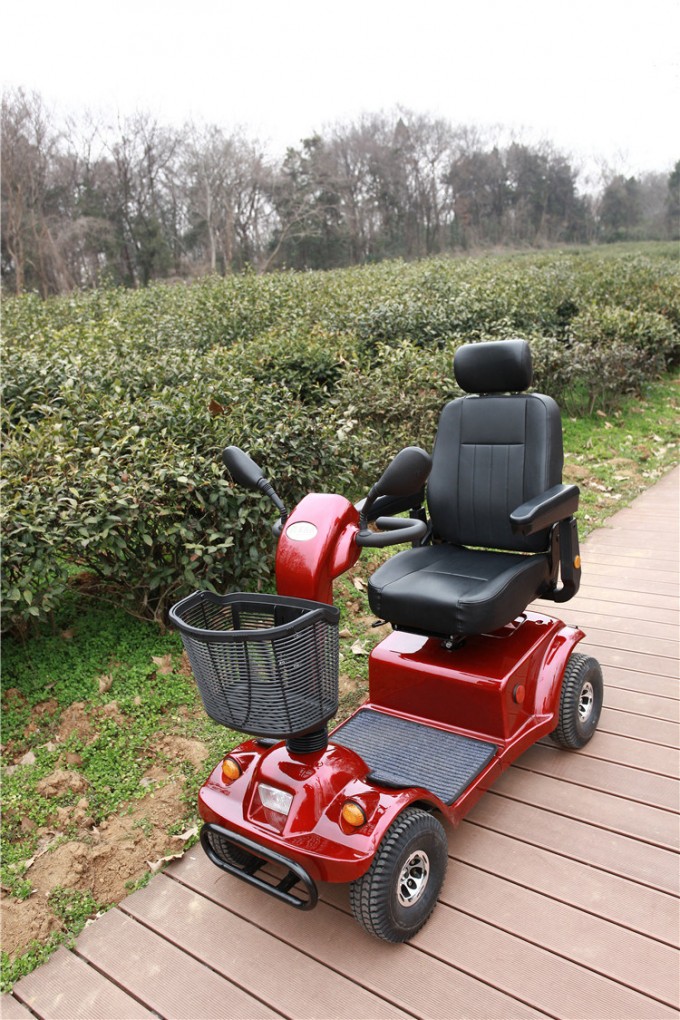

Newly design Intelligent Four Wheel Mobility Scooter Portable Travel for sale
DB18 Electric mobility scooter Key Features:
1. Removable and adjustable seat width, armrest can be lift.
2. Adjustable speed and direction.
3. Quality PG controller
4.PU foam hand,making the operation more comfortable.
5.Adjustable leading and removable seats, easy to carry.
6. Quality front bumper and rear bumper bar.
DB18 Electric mobility scooter Specification:
| Product name | Big power 4 wheels electric mobility freego scooter |
| Item Code | DB18 |
| Size (L×W×H) | 1400mm×700mm×1200mm |
| Package carton (L×W×H) | 1400mm×705mm×940mm |
| Package | 1pc/ctn, 5 layers carton, iron frame crate. |
| Front tires | 310mm×100mm black pneumatic tire 4.00-4 |
| Back rears | 310mm×100mm black pneumatic tire 4.00-4 |
| seat | Removable, eight azimuth rotation, sliding back and forth, backrest foldable, seat weight 20.23Kg |
| Seat height from ground | 630-680mm |
| Front wheels center width | 490mm |
| rear wheel center width | 570mm |
| Front and rear center distance | 915mm |
| Speed | 1-12Km/H(adjustable) |
| Driving range | 35-40Km |
| Driving time | 4H |
| The Ditch ability | 120mm |
| Drive mode | Rear-wheel drive |
| Brake system | Automatic electromagnetic brake DC24V |
| Total weight | Net weight:108KG |
| Gross weight:139KG |
| Max load | 150kg |
| Minimum ground distance | 120mm |
| Minimum radius of gyration | 1050mm |
| Max climb grade | 12°±1° |
| Controller | PG 120A programmable |
| Moter | 800W DC24V 3800RPM |
| Gearbox | 19.75:1 |
| Charger | DC24V/6A AC110-250V |
| battery | 12V 55AH×2 PCS(Lead-acid maintenance free battery)(33.48Kg) |
| Colour | Red, blue, silver |
| Quantity in Container | 20"GP--24PCS, 40"GP--48PCS, 40"HQ----48PCS |
Package: one set DB18 electric mobility scooter / iron stand.
Certificates:SGS,FDA,CE, ISO 13485, .
Company Brief:
JBHWheelchairis research and development, manufacturing and sales enterprise.Specialized in Portable power wheelchair,Portableelectric scooter, knee walker,and electric standingwheelchair. Products passed throughISO13485, FDA and CE standard.We provide OEM service, great quality."JBH" as the registered trademark renowned for "Safe, Light and Portable" on the market. Products covers 20 Provinces in China andexport to USA, UK, Canada, and Australia.JBH wheelchair gained wide range recognition and trust from our customers. We will continue providing high quality products and service.
OEM services:
(1) put logo on the products
(2)printing logo on the carton box ,if color box ,each item MOQ is 2000pcs
(3)we can change the accessories according to customer's request .according to hospital bed tender .
After-sale Service:
1. One year warranty under normal use.
2. If the quality problem, please contact us within 24 hours after received of the goods, we'll solve it immediately.
3. Under special circumstances, we'll re-send the spare parts or new products to the customers.
4. Keep the best service in the business, we'll get more cooperation with you.
We care from every detail and keep close contact with customers for the process. Our goal is to make customers happy and proud of us!
FAQ
.Q1:WhyChooseJIN BAI HE Products?
A1:Weare one oftheprofessionalwheelchairfactoryhereinChina,
Bestproductioncapability, Bestqualitycontrol,BestService,
Westartedupasafactory,manufacturingwheelchairs,electric scooter, Knee rehabilitation equipment, specializeinlightweight portable folding electric power wheelchair.
Q2:Howis JIN BAI HE ProductsQuality?
A2:Weonlysupplyqualityproducts,ourmanufacturingfacilitieshavereceivedtheISO,CE,recognition,andgetFDA certificate for some products .
Everyproductswillinspectedtothestandardbeforeshipment,andeveryproducthasoneyearwarrantyperiod.
Q3:WhatisyourMOQ(MinimumOrderQuantity)?
A3:Asafactory,ourMOQisa one piece,itcouldbemixedthedifferentmodels.
Q4:Paymentandshipment
A4:Weaccept:L/C,T/T,WESTERNUNIOn;
Deliverytime:Within25Workdaysupontheorder/confirm/ied;
Contact information:
Sales manager: Yiyue Liang
Mobile: +86 139 139 23936 Product Image
