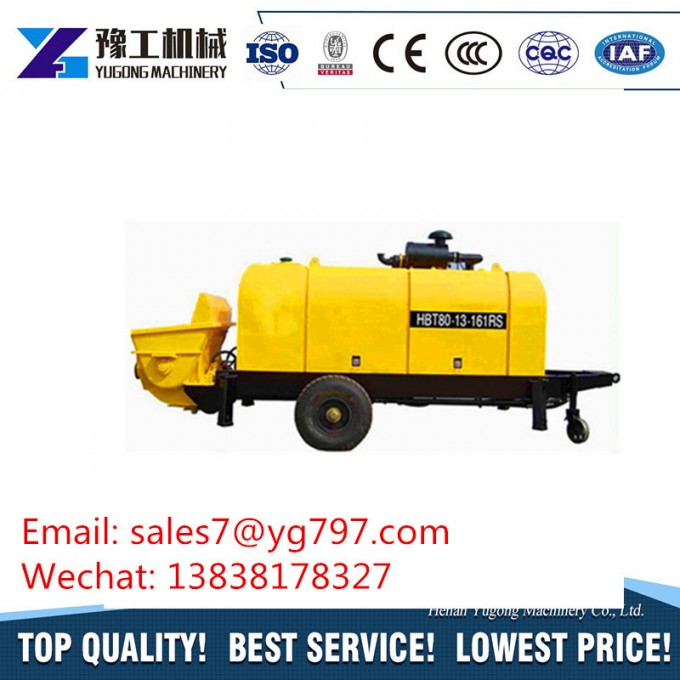

Mini Small Concrete Mixer with Pump Truck Parts Price

Concrete pumpBrief Introduction:
Power system:
1. Using KOREA KAWASAKI brand of Oil pump
2. Using well-known motor (30KW) from China.
Main pumping system:
1.Using Master Cylinder of HUNAN XIELI and Concrete Cylinder of WUXI ZHONGHONG. hydraulic grout pump
2. Open-loop hydraulic circuit.
Distribution system:
1. Using the swing cylinder (70) of CHANGSHA XIELI.
2. Using nested S-tube valve.
3. Using special glasses plates of wear-resistant materials, cutting ring. hydraulic grout pump
Mixing system:
1. Using cycloidmotor from Gold supplier in China..
2. Using super-resistant mixing blade shaft with pedal-style.
3. The hardness of left and right axle HB250-280 after quenched treatment. The thickness of the surface nitride is morethan 0.3mm, and the surface hardness is more than HB550. hydraulic grout pump
Cooling and filtration devices:
1. Using oil filter from WENZHOU LEEMIN that Zoomlion used. The filtration accuracy of main pump suction filter is 10.
2. Coolers from airline products are of reliable quality and good heat dissipation.hydraulic grout pump
Hydraulic piping and valve:
1. Using imported Italian MANULI oil pipe.
2. Using hydraulic control valve from the China HUADE company.
Electronic control systems:
1. Using AC contractors and control buttons from China famous brand.
2. Using Intermediate relay from JAPAN Omron.
3. Using GSK proximity switches from Germany.

TECHNIACL PAREMETERS
PRODUCT MODEL	UNIT	HBT30-8-45ES
Maximum Theoretical Throughput	M3/H	20
Concrete Delivery Pressure	MPA	8
Theoretical maximum transmission distance	Meter	50/200
Maximum Aggregate Size	MM	50
Distribution Valve Form		S valve
Concrete Cylinder Specification	MM	200*800
Hopper Capacity	M3
Motor Rated Power	KW	30
Total Weight	KGS	3200
Hydraulic oil tank capacity	L
Dimensions (L * W * H)	MM	4500*1850*1750

Package and Shipping
The main part of the machine is shipped in bulk and the parts of the pump machine is packed in wooden box properly.

1. Packaging: 1)Wrapped by proctective film;

2)Packed by standard import & export wooden cases or carton boxes.

2. Shipping: By logistics; by automobile; by train; by shipping; by air etc.

Service
24 hours online service is available and local distributors are available.
Payment
We normally accept T/T in advance, L/C at sight, Ali Escrow, Paypal, West union.
FAQ
1. Q: Are you trading company or manufacturer?
A: We are original equipment manufacturer.
2. Q: How long is your delivery time?
A: It is according to the model and quantity.
Generally it is 3-5 days if the machines are in stock.
It will be 15-30 days if you want to customize the machines.
3. Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer you the sample machine.
But it's not free. You need to pay for the sample and the cost of freight.
4. Q: What is your terms of payment?
A: We accept T/T, Western Union, Money Gram, Paypal, Alibaba Escrow etc.
Payment<=USD 5000, 100% in advance.
Payment>=USD 5000, 30% T/T in advance, balance before shipment.
Company Information
Henan Yugong Machinery Co., Ltd. has more than 20 years experience in manufacturing and selling construction and quarry related products.All those products we are selling or recommending to clients are updated based on marketing and operational requirements. We have our own professional R&D team who would solve the most difficult situations from each individual end users.
