Construction Machinery Mixer Truck 90m3/H Js1500 Concrete Mixer

Product Description

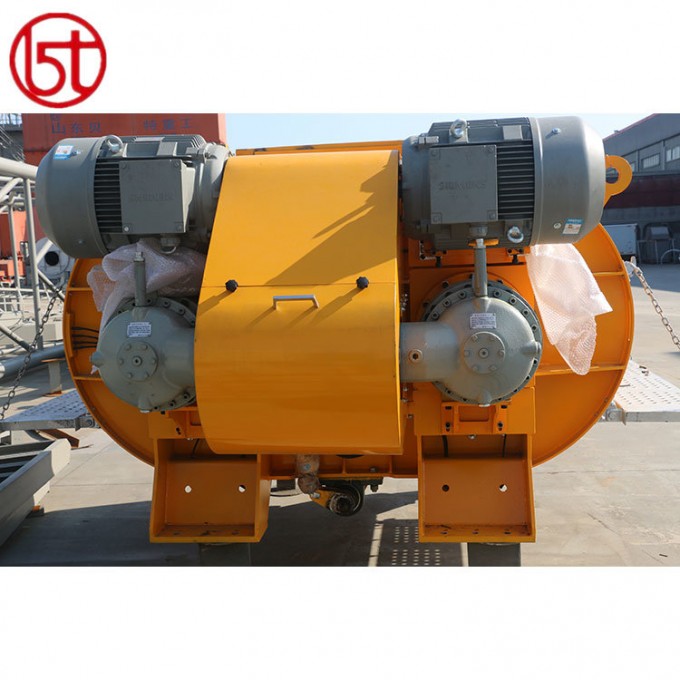

Construction machinery mixer truck 90m3/h JS1500 concrete mixer

Product features :The mixer is latest compulsory twin-shaft mixer, no manual cleaning, no material stickyThe equipment is modular design and highly industrialized, the installation and trial run is fast and convenientThe discharging hopper realizes quick unloading with anti-blocking design, the running is stable and reliable.The lifting hopper is equipped with new type of double rope anti-dropping device,the running is safe and reliable.The operation of control system is simple and easy to learn.The gathering hopper is durable with wear-resistant technique.HLS series concrete mixing plant parameters:

	HLS60	HLS90	HLS120	HLS180
Theoretical productivity	60 m3/h	90 m3/h	120 m3/h	180 m3/h
Mixer	JS1000	JS1500	JS2000	JS3000
Mixing motor	2×18.5 kW	2×30 kW	2×37 kW	2×55 kW
Mixing cycle	60 s	60 s	60 s	60 s
Mixer capacity	1000 L	1500 L	2000 L	3000 L
Discharging height	4.0 m	4.0 m	4.2 m	4.2 m
Discharging mode	automatic	automatic	automatic	automatic
Filler silo	2×100 t	3×100 t	4×150 t	4×150 t
Cold feed hopper	4×4 m3	4×15 m3	4×20 m3	4×20 m3
Hoisting mode	Long inclined belt	Long inclined belt	Long inclined belt	Long inclined belt
Aggregate metering accuracy	±2 %	±2 %	±2 %	±2 %
Cement metering accuracy	±1 %	±1 %	±1 %	±1 %
Fly ash metering accuracy	±1 %	±1 %	±1 %	±1 %
Water metering accuracy	±1 %	±1 %	±1 %	±1 %
Additive metering accuracy	±1 %	±1 %	±1 %	±1 %
Mixing tower coverage	color steel	color steel	color steel	color steel
Control cabin	with air conditioner	with air conditioner	with air conditioner	with air conditioner
Control system	automatic control	automatic control	automatic control	automatic control
Voltage	380V/50Hz	380V/50Hz	380V/50Hz	380V/50Hz
Installed power	110 kW	155 kW	206 kW	284 kW

HZS series concrete mixing plant parameters:

	HZS25(simple control)	HZS25	HZS35(simple control)	HZS35	HZS50	HZS75
Theoretical productivity	25 m3/h	25 m3/h	35 m3/h	35 m3/h	50 m3/h	75 m3/h
Mixer	JS500	JS500	JS750	JS750	JS1000	JS1500
Mixing motor	18.5 kW	18.5 kW	30 kW	30 kW	2×18.5 kW	2×30 kW
Mixing cycle	72 s	72 s	72 s	72 s	72 s	72 s
Mixer capacity	500 L	500 L	750 L	750 L	1000 L	1500 L
Discharging height	1.5 m	3.8 m	1.5 m	3.8 m	3.8 m	3.8 m
Discharging mode	manual	automatic	manual	automatic	automatic	automatic
Filler silo	2×100 t	2×100 t	2×100 t	2×100 t	2×100 t	2×100 t
Cold feed hopper	2×2 m3	2×2 m3	2×4 m3	2×4 m3	3×4 m3	3×15 m3
Hoisting mode	skip hoist	skip hoist	skip hoist	skip hoist	skip hoist	skip hoist
Aggregate metering accuracy	±2 %	±2 %	±2 %	±2 %	±2 %	±2 %
Cement metering accuracy	±1 %	±1 %	±1 %	±1 %	±1 %	±1 %
Fly ash metering accuracy	±1 %	±1 %	±1 %	±1 %	±1 %	±1 %
Water metering accuracy	±1 %	±1 %	±1 %	±1 %	±1 %	±1 %
Additive metering accuracy	Null	Null	Null	Null	±1 %	±1 %
Mixing tower coverage	Null	Null	Null	Null	Null	Null
Control cabin	Null	with air conditioner	Null	with air conditioner	with air conditioner	with air conditioner
Control system	simple control	automatic control	simple control	automatic control	automatic control	automatic control
Voltage	380V/50Hz	380V/50Hz	380V/50Hz	380V/50Hz	380V/50Hz	380V/50Hz
Installed power	48 kW	55 kW	58 kW	65 kW	105kW	140kW
