Marine Closed Chock JIS F2005-75

Marine Closed Chock JIS F2005-75

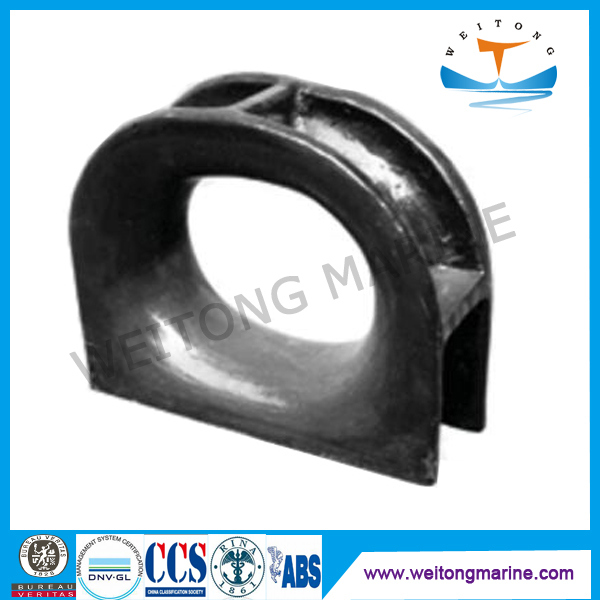

JIS F2005-75 Closed Chock can guide the rope from the inboard to the outboard at certain direction, change the trend of rope and limit its place. It can reduce the abrasion between rope with gunwale, avoid increasing the stress due to a sharp bend. Closed Chock is Widely used for small boats,ships,tug,cargo vessel,tankers etc. We can manufactures chocks in a wide variety of sizes and styles,also can customized the chock according to your drawing.
Specification

Weight	Type	A	B	C	D	E
3.7	100	100	170	76	141	60
10.5	150	150	250	110	205	90
24	200	200	340	150	208	120
48	250	250	434	200	372	160
83	300	300	528	250	464	200
103	350	350	600	250	485	220
136	400	400	672	250	506	240
184	450	450	746	250	528	260
232	500	500	820	250	550	280

Weitong Marine provide Kinds of Marine Chocks as following:

1.(DIN81915) Type Din Chocks,
2.Type U.S.Panama Chock,
3.JIS F2005-1975 Closed Chocks,
4.JISF 2007-1976 Mooring Chock(A),
5.JISF2017-1982 Panama Chock(AC),JISF2017-1982 Panama Chock(BC)
6.JISF2030-1978 Single Point Mooring Pipes(A),JISF2030-1978 Single Point Mooring Pipes(B)

Quality Assurance and Service
1. Have acomplete rigorous management, production and inspection processes to control the quality and avoid detail mistake
2. Design and produce ability
3. Rigorous inspection including incoming inspection, flaw detection etc., and double check is amust.
4. Advanced factory facility ensure
5. Response to any inquiry within 24 HRS with design or efficient solution from our engineer or tech supporter.
6. Provide professional customization service according to client's requirements
7. on time delivery, as we have rigorous production schedule and profession follow-up process
8. Moderate price and professional service

If you have any question or inquiry, please feel free to contact us for more details.
