Marine Mooring Chock a Type CB34-76 Marine Roller Fairlead Chock

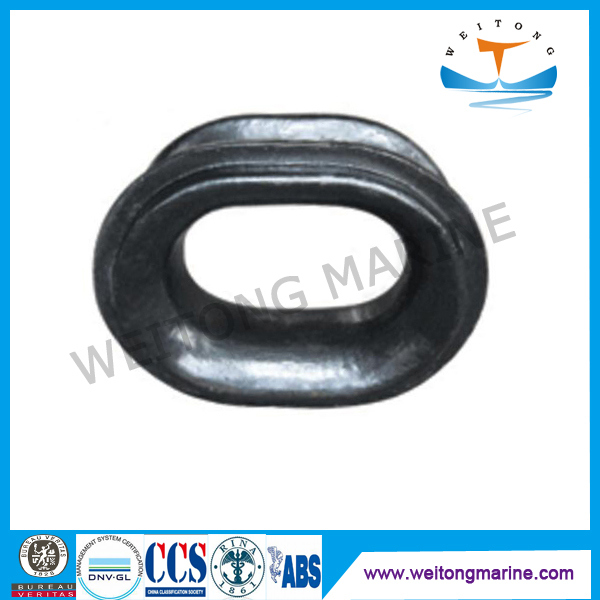

Mooring Chock A Type CB34-76
Mooring Chock A Type CB34-76 can guide the rope from the inboard to the outboard at certain direction, change the trend of rope and limit its place. It can reduce the abrasion between rope with gunwale, avoid increasing the stress due to a sharp bend. Closed Chock is Widely used for small boats,ships,tug,cargo vessel,tankers etc. We can manufactures chocks in a wide variety of sizes and styles,also can customized the chock according to your drawing.
Mooring Chock A Type CB34-76 Type C,Type B,Type C and Type D are available as well.

Mooring Chock A Type Specification
Max.Steel Wire Dia.	Hemp Rope C	Max.Nylon Wire Dia.	L	L1	L2	B	B1	B2	t	b1	b2	Weight (kg)
18.5	160	35	200	300	340	130	230	270	18	18	110	16.4
22.5	200	45	260	400	450	170	310	360	22	25	160	40.4
28	230	55	320	465	515	200	345	395	25	28	175	57
33.5	270	70	400	572	632	260	430	490	30	32	200	95.6
43.5	325	90	480	685	755	310	525	595	35	35	240	171

Weitong Marine provide Kinds of Marine Chocks as following:

1.(DIN81915) Type Din Chocks,
2.Type U.S.Panama Chock,
3.JIS F2005-1975 Closed Chocks,
4.JISF 2007-1976 Mooring Chock(A),
5.JISF2017-1982 Panama Chock(AC),JISF2017-1982 Panama Chock(BC)
6.JISF2030-1978 Single Point Mooring Pipes(A),JISF2030-1978 Single Point Mooring Pipes(B)

Quality Assurance and Service
1. Have acomplete rigorous management, production and inspection processes to control the quality and avoid detail mistake
2. Design and produce ability
3. Rigorous inspection including incoming inspection, flaw detection etc., and double check is amust.
4. Advanced factory facility ensure
5. Response to any inquiry within 24 HRS with design or efficient solution from our engineer or tech supporter.
6. Provide professional customization service according to client's requirements
7. on time delivery, as we have rigorous production schedule and profession follow-up process
8. Moderate price and professional service
