Marine Bulwark Mounted Deck Mounted DIN 81915 Chock Type a

Marine New Panama Bulwark Mounted Deck Mounted DIN 81915 Chock Type A

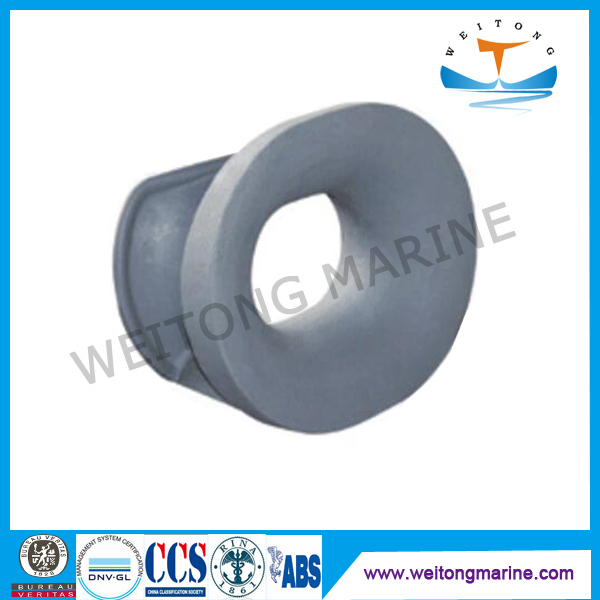

Deck Mounted Chock DIN 81915 is a popular type of Chocks, made of cast steel material, seat and bulwark are made by processing steel sheet. Deck Mounted Chock DIN 81915 is widely used for vessel,tug,cargo ship,military ship, industrial ships etc, usually it is installed at bow and stern of tankers for general mooring purposes.
We can manufactures chocks in different sizes and styles,also can customized the chock according to your drawing.

Specification

Type	WireW.L.	b1	b2	h1	h2	h3	l1	r1	r2	s1	s2	w1	w2	weight
	(Kn)													(kg)
A2	20	315	225	200	70	25	360	100	57.5	12	6	160	115	26
A3	30	390	275	250	75	32	450	125	70	14	7	200	140	42
A5	50	480	340	300	80	38	550	150	90	16	8	250	180	74
A8	80	585	415	360	90	45	680	180	112.5	18	9	320	225	120
A12	125	710	500	440	110	55	840	220	135	20	10	400	270	185
A20	200	840	595	520	130	65	1020	260	160	22	11	500	320	285
A32	320	1100	800	700	150	80	1300	350	200	35	20	600	400	795

Weitong Marine provide Kinds of Marine Chocks as following:

1.(DIN81915) Type Din Chocks,
2.Type U.S.Panama Chock,
3.JIS F2005-1975 Closed Chocks,
4.JISF 2007-1976 Mooring Chock(A),
5.JISF2017-1982 Panama Chock(AC),JISF2017-1982 Panama Chock(BC)
6.JISF2030-1978 Single Point Mooring Pipes(A),JISF2030-1978 Single Point Mooring Pipes(B)

Quality Assurance and Service
1. Have acomplete rigorous management, production and inspection processes to control the quality and avoid detail mistake
2. Design and produce ability
3. Rigorous inspection including incoming inspection, flaw detection etc., and double check is amust.
4. Advanced factory facility ensure
5. Response to any inquiry within 24 HRS with design or efficient solution from our engineer or tech supporter.
6. Provide professional customization service according to client's requirements
7. on time delivery, as we have rigorous production schedule and profession follow-up process
8. Moderate price and professional service
