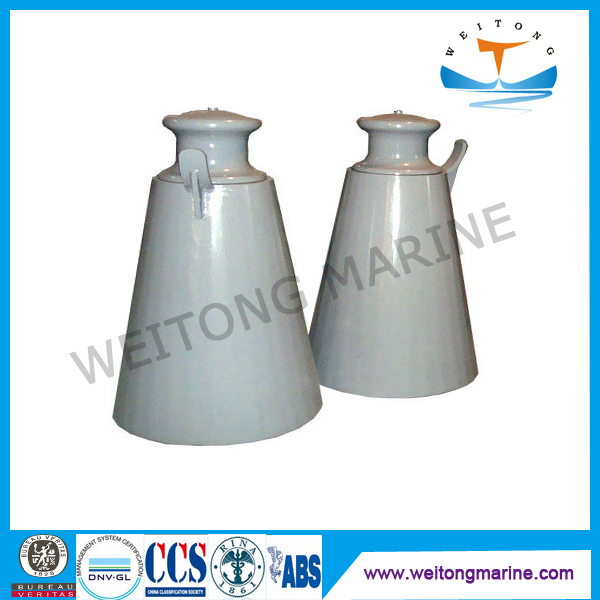

Marine Fairlead Single Warping Roller with Pedestal

Marine Fairlead Single Warping Roller with Pedestal
marine fairlead with single roller has two types: type A and type B. This kind of fairlead warping Roller is designed as per the standard of CB436-2000. It cast from the finest quality steel for added durability, equipped with a weld down base or socket/pedestal with optional heights and delivered with Bronze-Steel bearings or other bearings upon request. Rollers on a socket can equipped with a keeper that pvents the mooring line from dropping when tension on the line slackens.

Product Detail
Material: Cast Iron/ Cast Steel
Standard: CB*58-83, CB436-2000
Roller No.: Single Roller
Roller Diameters: 100mm~450mm
Roller Weight: 9.9kg~452kg
base Weight: 63.9kg~445.4kg
Certificate: CCS, ABS, BV, LR, NK, RINA

Aadvantages :
Durability
Compact design,
pcision machined smooth surface
easily removable shafts,
Featurers:
1.Finish: Epoxy finishing
2.Can be designed according to customers requirements.
3.Easily removable shafts.
Open Type Three Roller Fairlead Certificate:ABS, BV, GL, DNV, CCS,mill certificate etc.

Specification

DIA OF ROLLERD	APPROPRIATE CABLE DIA				SIZE								WEIGHT (kg)
	STEEL WIRE STRENGTH		HEMP	SYNTHETIC	D1	D4	H	H1	L	S	t	t1	GUIDE ROLLER	STAND
			ROPE	FIBER ROPE
	6*24	6*37
150	16-18	14-16	45	32	240	264	154	30	75	5	12	8	24.8	129
200	22	20	55	40	310	338	186	30	85	5	14	10	49.3	178
250	24	24	65	45	380	408	230	35	100	6	14	10	92	207
300	30	28	70	50	440	472	255	35	100	7	16	12	127	265
350	38	34	75	55	500	536	271	35	100	7	18	14	168	332
400	40-42	38-40	85	65	560	600	307	40	100	7	20	16	252.5	401.3
450	44	42-44	-	80	630	670	316	40	120	7	20	16	310	452

Quality Assurance and Service
1. Have acomplete rigorous management, production and inspection processes to control the quality and avoid detail mistake
2. Design and produce ability
3. Rigorous inspection including incoming inspection, flaw detection etc., and double check is amust.
4. Advanced factory facility ensure
5. Response to any inquiry within 24 HRS with design or efficient solution from our engineer or tech supporter.
6. Provide professional customization service according to client's requirements
7. on time delivery, as we have rigorous production schedule and profession follow-up process
8. Moderate price and professional service

If you have any question or inquiry, please feel free to contact us for more details.
