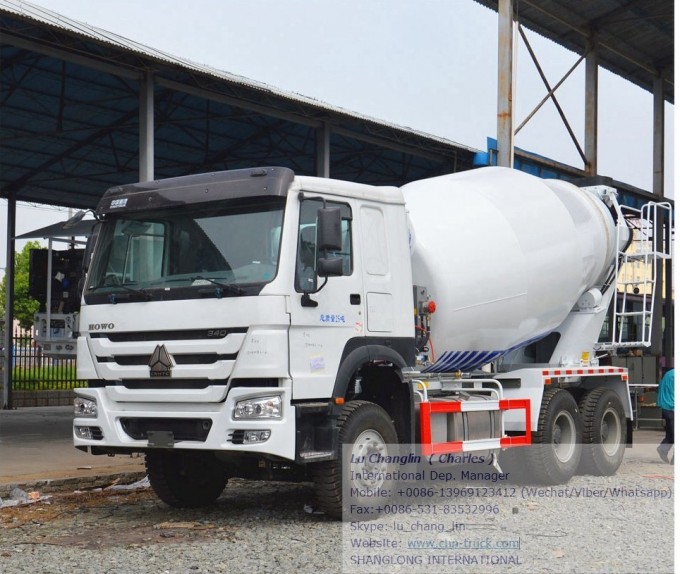

Product DescriptionSinotruk HOWO 9 M3 Concrete Mixer Truck Cement Truck
1. The HOWO series from SINOTRUK offers you great value for your money.
It comes without all the fancy items that only look impssive on the specification sheet, but aren't really needed in your daily operation. What you get is thought through and proven quality components that make these 6x 4dump truck reliable and easy to drive. Developed with the driver's comfort and safety in mind, you get exactly what you need: just agreat truck. Simple and reliable.
(1) Better aerodynamics with improved front
Improved aerodynamics: better fuel economy, which again improves your bottom line. Easy access for maintenance.
(2)Ergonomically designed workspace
Ergonomically designed driver's seat: easy reach and access. Comfort for the operator. Design and layout of dashboard provides crucial information in view and all functions in easy reach.
(3) Acomfortable ride with air suspended seats
Air-suspended driver and passenger seats: relaxed and comfortable ride. Seats are fully adjustable, fitting the driver's body.
(4) Ample power when you need it
WD615.47, Euro II emission standard, 4stroke direct injection diesel 6cylinder in-line engine with water cooling, turbo-charging &intercooling. Maximum output: 371hp (273Kw) at 2200 rpm according to DIN and maximum torque 1500 Nm at at 1100~1600 rpm. Meanwhile, WD615.69, WD615.87, WD615.62 is optoinal
Type | 9cubic meters concrete /cement mixer truck |
Chassis model | ZZ1257N3847 |
Dimension | 9335×2496×3980mm |
Rated loading capacity | 11850kg |
Wheel base | 3800+1350mm |
Tire specification | 12.00-20(11pcs) |
Engine model | WD615.69(sino truck brand) |
Power | 336HP |
Emmission standard | Euro 2 |
Fuel material | Diesel |
Max speed | 90km/h |
Feeding speed | ≥3m3/min |
Output speed | ≥2m3/min |
Speed reducer | import from italy |
Water box capacity | 300L |
8m3concrete mixer | Italy PV089 pump, MF089motor, 6SP Gearbox, China 12R radiator |
9m3concrete mixer | Italy PV089 pump, MF089motor, TOP P68 Gearbox, China 12L radiator |
10m3concreter mixer | Italy PV089 pump, MF089motor, TOP P68 Gearbox, China 12L Radiator |
11-12m3concrete mixer | Italy PV089 pump, MF089motor, TOP P75 Gearbox, China 12L Radiator |
14m3 concrete mixer | Italy PVA090 pump, MF090motor, TOP P75R or P80 Gearbox, China 25L or 26L Radiator |
16m3 concrete mixer | Italy PVA090 pump, MF090motor, TOP P80 Gearbox, China 25L or 26L Radiator |
Mixer body material | 5mm or 6mm steel plate |
