Detailed Description
3cbm, 4cbm LHD or RHD small self-loading co
ncrete mixer truck/cement mixer for sale:
1.3cbm/4cbm LHD or RHD Small Co
ncrete Mixer Truck, is the small size of FOCUSLHD or RHD Co
ncrete Mixer Truck, small co
ncrete mixer truck, mini co
ncrete truck mixer, also called co
ncrete truck mixer, co
ncrete transit mixer,etc.
2. Volume of mixer tank:3/4cbm, Drive:4x2.
3.internatio
nal famous brand hydraulic drive fits are adopted in our
Concrete mixer truck;
4.integral type oil tank, oil cooler and electrical fan are adopted with simple and reliable system;
5.multi-points control system enables theconcrete mixer truckoperation to be easier, safer and more comfortable;
Main features of FOCUS LHD or RHD self-loadingconcrete mixer truck/cement mixer?
1.Pump, motor and reducer inFOCUS concrete mixer trucksare all original imported AMERICA static pssure driving system with big driving torque and high efficiency.
2.imported hose and connector are separately from GERMANY EMB and ITALY MANULI.
3.Hose buckling device is totally from GERMANY HYDAC.
4.Stirring vat auto-welding improvesFOCUSconcrete mixer truck/ cement mixerproduction efficiency and makes welding quality finer.
5.Truck frame adopts tri-axial lineation machining, and adopts laser check to ensure an accurate installation position.
| [ Main Technical Parameter ] |
| Chassis Brand | FOTON | Batch No. | 256 |
| Product Name | BJ5145GJB-1 Concrete Mixer Truck | Truck Model | ZK3WU4C8044 |
| Total weight(Kg) | 13570 | Tank Volume(m3) | 4 |
| Rated Load(Kg) | 7395 | Dimension(mm) | 6460x2255x3300 |
| Curb Weight(Kg) | 5980 | Passenger(person) | 3 |
| Approach angle/departure angle(°) | 24/20 | Front overhang/rear overhang(mm) | 1230/1830 |
| Axel No. | 2 | Wheelbase(mm) | 3400 |
| axle load (Kg) | 4860 | Max. Speed(Km/h) | 83 |
| Other | Mixing Volume:4m3
Material of side and below protective device:Q235 steel,
Connection type: Bolt Connection
Height of back protective device:500mm |
| [ Chassis Parameter ] |
| Chassis Model | BJ1145VJPFA-1 | Brand | FOTON |
| Dimension(mm) | 6070x2180x2510 | Quantity of Tire | 6 |
| Approach angle/departure angle(°) | 24/22 | Tire specification | 8.25-20 |
| Steel Spring No. | 10/12+9 | Front Tread(mm) | 1774 |
| Fuel | Diesel | Back Tread(mm) | 1669 |
| EMISSION STANDARD | Euro III |
| Engine Model | Engine Manufacturer | Displacement(ml) | Power(Kw) |
| YC4D130-41 | Guangxi YuChai Diesel Engine Co., Ltd | 4200 | 96 |

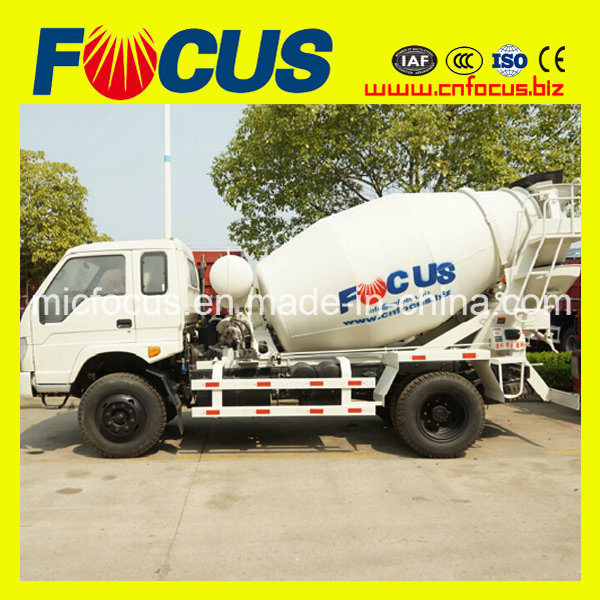

Product Image
