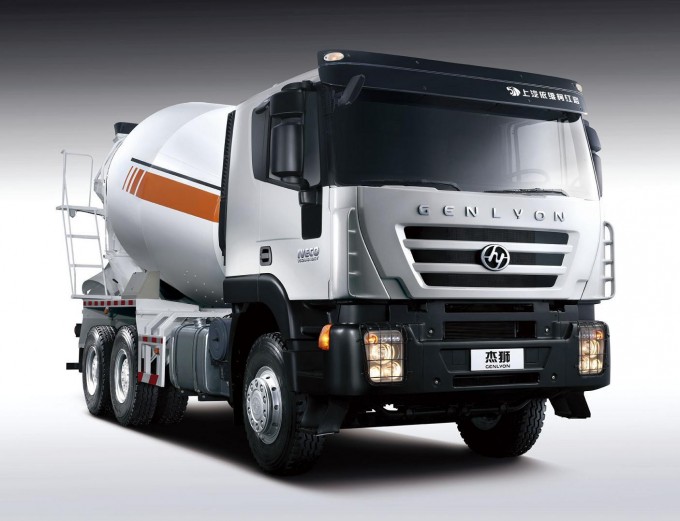

Saic-Iveco Genlyon 6X4 380HP Concrete Mixer Truck

1. Saic-Iveco Hongyan Genlyon truck;
2. Adopt Italian advanced techonology;
3. Flexible sales system, competitive price;
4. Excellent quality, good after services and mature spare parts system.

If you have interest in this model, send the inquiry, and we will always be glad to quote.

TECHNICAL SPECIFICATION
NO.	SPECIFICATION	PARAMETER			NOTE
1	Model:	CQ5254GJBHTG384
2	Cab:	Genlyon flat-roof cab, Left-Hand drive with AC
3	Drive:	6× 4
4	Rated Payload(kg):	11890
5	Kerb Weight(kg):	12980
6	Gross Vehicle Weight(kg):	25000
7	Overall Dimension(mm):	8875/9125× 2500× 3950
8	Max Speed(km/h):	80
9	Wheelbase(mm):	3825+1350
10	Engine:	C9 340			Euro III
11	Engine Output:	340HP
12	Gearbox:	RT-11509C
13	Front Axle:	Iron Cast I-Shaped Axle, Capacity: 7000 kg
14	Drive Axle:	twin Welding, with Differential Lock, 18000 kg
15	Tyre:	12.00 R20
16	Oil Tank(L):	400L Aluminum-Magnesium Alloy
17	Stirring Tank:	volume(m3): 9
		Reducer: ZF, P4300
		pump: Sauer, T90PV075
		motor: Sauer, T90MF75

SAIC-IVECO HonGYAN Company is an experienced heavy duty truck manufacturer. based in Chongqing city, China, we design, manufacture a wide range of heavy duty trucks and special trucks based on heavy duty trucks such as tractor unit, dump truck, cargo truck, tanker truck, and some construction engineering vehicles like concrete mixer truck. SIH is based on China state owned enterprise.

SIH implemented a series of effective quality control measures , introduced advanced IVECO prototype vehicle technology, acquired state-of-the-art production and inspection equipment, employed experienced staff, and strictly implemented the ISO9001:2000 quality management system to monitor every production process. In addition, we provide continuous training to improve employee efficiency, which greatly reduces our production costs, thus enabling us to provide our heavy trucks at lower price.
