Marine Casting Bar Type Chain Stopper JIS F2015-76

Marine Casting Bar Type Chain Stopper JIS F2015-76

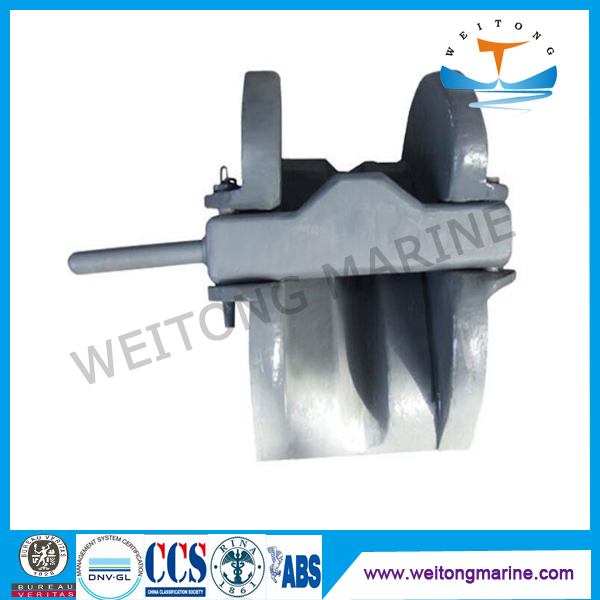

Bar Type Chain Stopper is used to clamp the anchor chain when the vessel mooring, chain stopper transport the pull strength of anchor and chain to vessel, can withstand the pull of anchor chain so as to protect the anchor windlass not in pull state. Chain Stopper is installed on the deck between windlass and hawsepipe.
Process:casting,forging, welding
Finish: anti-rust paint
Withstand 80% of Chain Cable's breaking load
Certificate:ABS, BV, GL, DNV, CCS,mill certificate etc.
Specification

Nominal Dia	Suitable Chain Dia.(mm)	Dimensions(mm)
		A	B	C	D	Weight(KG)
19	17-19	190	270	200	134	17
22	20-22	216	310	226	153	24
25	23-25	241	345	256	175	33
28	26-28	270	385	280	193	44

Quality Assurance and Service
1. Have acomplete rigorous management, production and inspection processes to control the quality and avoid detail mistake
2. Design and produce ability
3. Rigorous inspection including incoming inspection, flaw detection etc., and double check is amust.
4. Advanced factory facility ensure
5. Response to any inquiry within 24 HRS with design or efficient solution from our engineer or tech supporter.
6. Provide professional customization service according to client's requirements
7. on time delivery, as we have rigorous production schedule and profession follow-up process
8. Moderate price and professional service

If you have any question or inquiry, please feel free to contact us for more details.
