Boat Chock Fairlead Marine Roller Fairlead Four-Roller Fairlead Type a JIS F 2026-80

Boat Chock Fairlead Marine Roller Fairlead Four-roller Fairlead Type A JIS F 2026-80

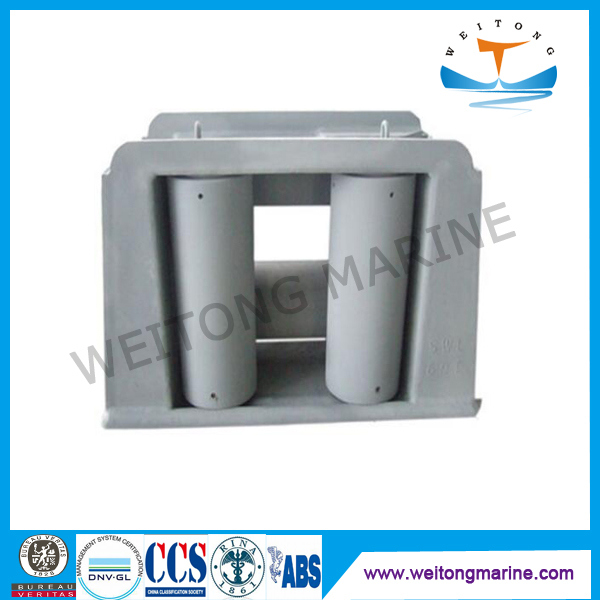

Four-roller Fairlead Type A JIS F 2026-80, consistinng of vertical and horizontal rollers, can guide mooring ropes from any direction. Horizontal roller fairlead, also called universal rolelr fairlead, is usually located in the deck end. Horizonal roller fairlead can greatly recuce the abrasion of mooring ropes for the rollers fixed around the fairlead.
1.Good wear and corrosion resistance.
3.Durable, long lifetime.
3.Provide CCS , BV , LR , BV etc Certificate.
4. Marerial: cast steel ZG230-450,Q235.
5.Surface: Blasting,Epoxy.
6.Customized service is available, Advanced equipment ,Strong consciousness in controlling quality.
We can supply roller fairlead, Fairleads with horizontal rollers according to JISF, DIN and GB standards . We can also make these products according to buyer's drawings.
Specification

Nominal Dia	frame
	B	B1	b	b1	b2	D	D1	D2	H	h	h1	h2	L	L1	l	l1	l2
140	310	355	150	69	20	90	140	120	480	275	130	40	515	805	335	120	60
160	360	405	175	82	22	110	160	140	515	290	145	45	570	890	365	135	65
180	410	455	200	95	24	135	180	150	560	315	155	50	620	960	390	145	70
200	460	505	225	108	26	160	200	160	590	330	170	60	675	1049	420	160	80
250	565	610	280	133	30	200	250	200	715	415	195	75	825	1303	520	210	105
315	670	715	330	159	34	240	300	240	870	520	220	90	980	1562	620	260	130

Nominal Dia.	frame
	l3	l4	R	t	t1	t2	t3	t4	wire rope Dia.	Opening Dia.(L*W)	weight(kg)
140	50	20	40	12	10	16	6	20	18	148*195	187
160	50	20	45	14	10	18	8	22	22.4	150*200	277
180	50	20	50	16	10	20	10	24	25	150*199	387
200	50	20	60	18	12	22	10	26	28	152*204	510
250	60	25	75	20	14	26	12	30	35.5	199*253	900
315	60	25	90	22	16	30	14	34	42.5	253*302	1230

Quality Assurance and Service
1. Have acomplete rigorous management, production and inspection processes to control the quality and avoid detail mistake
2. Design and produce ability
3. Rigorous inspection including incoming inspection, flaw detection etc., and double check is amust.
4. Advanced factory facility ensure
5. Response to any inquiry within 24 HRS with design or efficient solution from our engineer or tech supporter.
6. Provide professional customization service according to client's requirements
7. on time delivery, as we have rigorous production schedule and profession follow-up process
8. Moderate price and professional service

If you have any question or inquiry, please feel free to contact us for more details.
