Detailed Description
Co
ncret Truck& Cement Truck &Heavy Truck
Quality heavy truck designed from military manufacturer.
Reliable quality with competitive price.
POWER Engine: WEICHAI, CUMMINS, MAN
GEAR BOX: EATON FULLER, FAST
CABIN: STEYER, MAN(F2000, 3000)
EMISSION: EURO 2, 3, 4, 5
STEYER, MAN, BENZ design platform.INTERNATIonAL QUALITY STANDARD
|
Cabin
| air deflector,air-condition ,single or doublesleeper, USB application,
electric window lifter,GPRS management system.MAN/STEYER cabin
|
Drivetype
| Left hand /right hand,4x2,6x2,6x4,8x4,6x6.
|
Engine :WEICHA I(WP series ,WD series)CUMMINS series:
|
Type
| Diesel 4-stroke direct injection engine,
6-cylinder in line with water cooling, turbo-charging& inter cooling.
|
Number of cylinder
| Inline six-cylinder
| BOSCH oil pump
|
Displacement
| 5.762L, 11.596L
|
|
Emission
| Euro2,3,4
|
|
Max torque (kg.m/rpm)
| 1 070NM-2000NM@1400-1600rpm
|
Cl utch
|
Type
| φ 430 diaphragm construction
|
Single-plate dry cluth,mechanically operating with air assisted
|
Gear box ,Transmission
|
Model
| FAST FULLER(recommendation), ZF 8098,
|
Type
| 9,10,12,16 speedsAS (Automatic Synchronizer )
|
Gear box
| Mechanical form ,Remote control device
|
Frontaxle
|
Type
| STYER /HANDE,
|
Permissble load
| Kg /axle
| 65 00 kg,7500kg
|
Reardriving axle
|
Model
| STYER /HANDE driving axle
|
Type
| Pressed axle housing,single/double reduction with planetary wheel reduction.
|
Permissble load
| Kg /axle
| 1 3000kg,16 000 kg
|
Track
| 1800/1860
|
Transmissionratio
| 4.424.805.736.727.498.409.94
|
Tyre:
|
| Bias/Radial TYRE315/80R22.5 /12.00R20
|
Braking sytstem
|
Brake
|
| ABS,ASR
|
Service brake
| Dual circuit pneumatic brake
|
Parking brake
| Spring energy,compssed air operating on rear wheels
|
Hanging
|
Type
| FR/RR
| Spring plate,Lug/Multi-leaf spring
|
Electric equipment
|
Operating voltage
| 24v,negative grounded
|
Battery voltage/capacity
| 12v/135A,165A
|
Turning technology
| ZF8098hydraulic pssure steering system
|
Oil Tank :38 0L -1000L
|
Dimension of King pin(5th wheel):50(2''),90(3.5'').
|
Other option:PTO, more than 20 colors' surface, strengthen leaf spring.mainly as your requests.
|
| Dimension | Unit | QY50K-II |
| Overall length | mm | 13750 |
| Overall width | mm | 2800 |
| Overall height | mm | 3520 |
| Total weight in travel | kg | 41000 |
| Front axle load | kg | 15000 |
| Rear axle load | kg | 26000 |
| Engine model | | WD615.334(domestic III) |
| Max. travel speed | km/h | 80 |
| Min. turning diameter | m | 24 |
| Min. ground clearance | mm | 291 |
| Approach angle | ° | 17 |
| Departure angle | ° | 11 |
| Max. grade ability | % | 40 |
| Fuel consumption for 100km | L | 45 |
| Max. rated total lifting capacity | t | 50 |
| Min. rated working radius | m | 3 |
| Turning radius at turntable tail | m | 3.482 |
| Max. lifting torque | kN.m | 1764 |
| base boom | m | 11.3 |
| Fully extended boom | m | 42.7 |
| Fully extended boom+ jib | m | 57.7 |
| Longitudinal outrigger span | m | 5.91 |
| Lateral outrigger span | m | 6.9 |
| Boom luffing time | s | 88 |
| Boom full extension time | s | 180 |
| Max. swing speed | r/min | ≥2.0 |
| Max. speed of main winch (single rope) (no load) | m/min | ≥110 |
| Max. speed of aux. winch (single rope) (no load) | m/min | ≥110 |

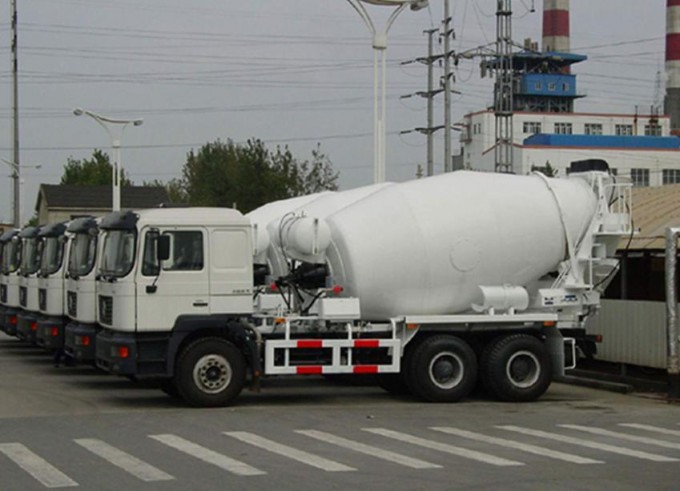

Product Image
