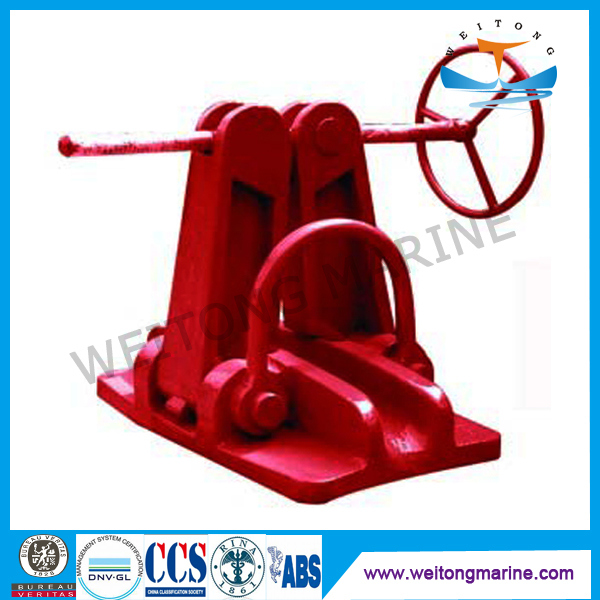

Marine Screw Type Chain Stopper

Marine Screw Type Chain Stopper
Screw type chain stopper GB/T 178-1996 (also known as swivel type chain stopper and spiral type chain stopper), is used to clamp the anchor chain when the vessel mooring, chain stopper transport the pull strength of anchor and chain to vessel, can withstand the pull of anchor chain so as to protect the anchor windlass not in pull state. Chain Stopper is installed on the deck between windlass and hawsepipe.
Suitable chain cable Dia.: from 17mm---132mm
Type can supplied: JIS F2033, JIS F2002, JIS F2023, JISF2015,
Paint: Grey Epoxy Primer, for the middle paint and surface according to your requirement.
Material: cast steel ZG200-400,ZG230-450
Process:casting,forging, welding
Finish: anti-rust paint
Withstand 80% of Chain Cable's breaking load
Certificate: ABS,CCS,DNV,LR,KR etc.
Specification

Anchor Chain Dia.	22--26	28--32	34--38	40--44	46--48	52--58	60--66
B	280	310	360	420	480	550	640
C	190	210	250	290	330	380	440
H	335	400	455	515	585	680	775
L	500	550	600	670	770	970	1000
L1	275	330	375	430	480	565	640
L2	265	320	365	415	465	545	615
Weight(kg)	90	122	163	238	353	518	772

Quality Assurance and Service
1. Have acomplete rigorous management, production and inspection processes to control the quality and avoid detail mistake
2. Design and produce ability
3. Rigorous inspection including incoming inspection, flaw detection etc., and double check is amust.
4. Advanced factory facility ensure
5. Response to any inquiry within 24 HRS with design or efficient solution from our engineer or tech supporter.
6. Provide professional customization service according to client's requirements
7. on time delivery, as we have rigorous production schedule and profession follow-up process
8. Moderate price and professional service
