Marine Chock Boat Fairlead Chock Panama Chock AC JIS F2017-82 Bulwark Mounted Type

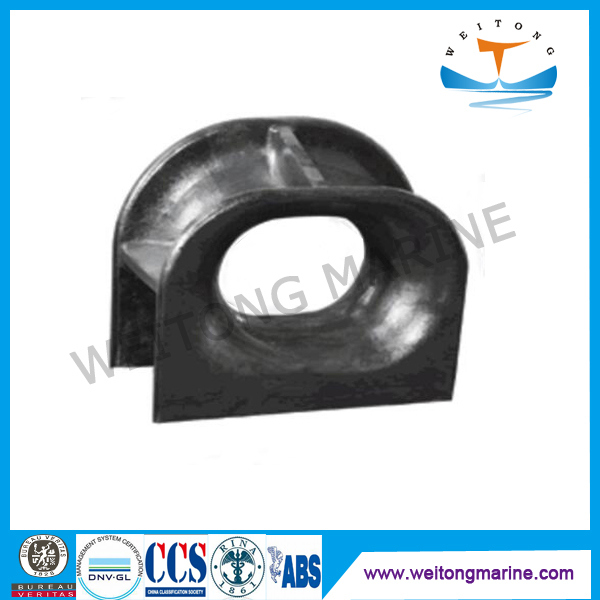

Panama Chock AC
Panama Chock AC is a popular type of marine Chocks, made from cast steel material, seat and bulwark are made by processing steel sheet. We can manufactures chocks in a wide variety of sizes and styles,also can customized the chock according to your drawing.
1.Material:cast steel ZG200-400,ZG230-450.
2.Paint:Normally we adopt Grey Epoxy Primer or Black Bitumen Paint.
3.Packing:Iron shelf or as per your request.
4.surface in contact with the rope in use been finished smoothly.
Panama Chock AC Certificate: ABS,GL,RINA,DNV, mill certificate available, etc.

Panama Chock AC Specification
JIS F2017-1982 AC type Deck mounted Panama chock
Model	Dimensions(mm)					Mass(kgs)
	A	B	C	D	E
PAC-001	310	708	639	541	652	253
PAC-002	360	760	640	542	704	289
PAC-003	400	804	642	545	750	323
PAC-004	450	856	643	547	802	351
PAC-005	500	908	644	549	854	395

Weitong Marine provide Kinds of Marine Chocks as following:

1.(DIN81915) Type Din Chocks,
2.Type U.S.Panama Chock,
3.JIS F2005-1975 Closed Chocks,
4.JISF 2007-1976 Mooring Chock(A),
5.JISF2017-1982 Panama Chock(AC),JISF2017-1982 Panama Chock(BC)
6.JISF2030-1978 Single Point Mooring Pipes(A),JISF2030-1978 Single Point Mooring Pipes(B)

Quality Assurance and Service
1. Have acomplete rigorous management, production and inspection processes to control the quality and avoid detail mistake
2. Design and produce ability
3. Rigorous inspection including incoming inspection, flaw detection etc., and double check is amust.
4. Advanced factory facility ensure
5. Response to any inquiry within 24 HRS with design or efficient solution from our engineer or tech supporter.
6. Provide professional customization service according to client's requirements
7. on time delivery, as we have rigorous production schedule and profession follow-up process
8. Moderate price and professional service
