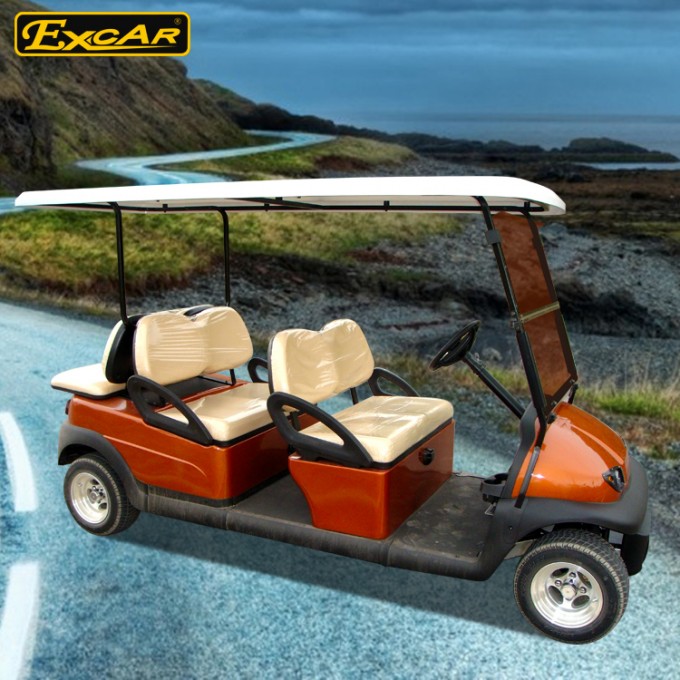

Wholesale 6 Seats Electric Golf Cart

Wholesale 6 Seats Electric Golf Cart

Key Components

Item	Description
System	DC system	AC system
Controller	Curtis controller1266A-5301, 350A, imported from USA directly	Curtis controller1234E-5221, 275A, imported from USA directly
Motor	ADC brand Separately excited DC motor 48V 3.7kw	ADC brand Separately excited AC motor 48V 3kw
Battery	Trojan battery, T875,8V*6pcs,imported from USA directly	Trojan battery, T875,8V*6pcs,imported from USA directly
Transaxle	Italian GRAZIANO axle with gear ration 1:12	Italian GRAZIANO axle with gear ration 1:16
Charger	High Frequency onboard charger 48V/17Aregulator	High Frequency onboard charger 48V/17Aregulator

Performance

Item	Description
system	DC system	AC system
Passenger Capacity	6	6
Climbingcapacity(full load)	30%	35%
Max.forward speed	23km/h	45km/h
Endurance mileage	50-70km	60-80km
Charging time	8-10hours	8-10hours
Max.loading weight	360kgs	360kgs
Min.turning radius	3.9m	3.9m
Max. movement after brake at speed of 20km/h	≤4m	≤4m

*1) based on the test conditions: 20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;
* 2) Range will vary depending on temperature, grade, payload and driving style.
Dimensions

Item	Description
Overall dimensions (L x W x H)	3500x1200x1900mm
Ground clearance	114mm
Wheelbase	2490mm
Front wheel tread (mm)	860mm
Rear wheel tread (mm)	970mm

Body and frame

Item	Description
frame & Chassis	Aluminum alloy beam, bended
Body	PP engineering plastic front and rear body cover, injected
Roof	Glass fiber reinforced plastic
Windshield	Organic glass (PMMA),one-pieceor two pieces
Roof supports	Imbedding black coating steel tube in the plastic support
Cushion	Reborn sponge with artificial leather and plastic bottom cover
Backrest	Reborn sponge with artificial leather and plastic cover
Armrest	Plastic
Floor mat	Anti-skiddingrubber
Rear basket	Plastic
Golf bag holder	Plastic support with nylon strap
Dashboard	Black plastic material, battery power indicator, ignition key on it
Beverage holders	4 pcs cups holders, 2 pcs for each side
Side trim	Plastic, black
Score card holder	On the steering wheel

Electric System

Item	Description
Lights	48V, LED headlight (includes turning light and position light), LED taillights (includes brake lights and turning light),
Horn	Electric horn, 48V
Reverse buzzer	Electric, 48V
Combination switch	Control the lights and horn
Digital Meter (optional)	Including kilometer indicator, speed indicator, overload indicator, parking brake indicator, clock

Steering & suspersion

Item	Description
Steering System	Self-adjusting rack and pinion steering system, with automatic compensation function
Brake System	Rear wheel mechanical brake
Accelerator	Holzer type, stepless speed change
Front suspension	Mcpherson independent spring suspension
Rear suspension	Coil spring hydraulic shock absorber
Driving model	Rear axle two stage deceleration, motor direct driving
Wheel & Tyre	Aluminum wheel & USA Carlisle 18*8.5-8 6 layers

Option Accessories
To increase the sales value of our golf cart, we also provide many optional

Item	Option description	Item	Option description
1	E-key	11	2-point seatbelt
2	Hinged windshield	12	Battery water refill system
3	Laminated windshield with wiper	13	Digital meter
4	Steel brush guard	14	EM brake
5	Front steel basket	15	Four wheel disc brake
6	Inner rear view mirror	16	Carlisle 205/50-10tyre with10inch wheel
7	Side rear view mirror	17	Ice box
8	Enclosure	18	Sand bottle
9	Sunshine cover	19	Sand rake
10	Golf bag cover	20	Ball washer
