Detailed Description

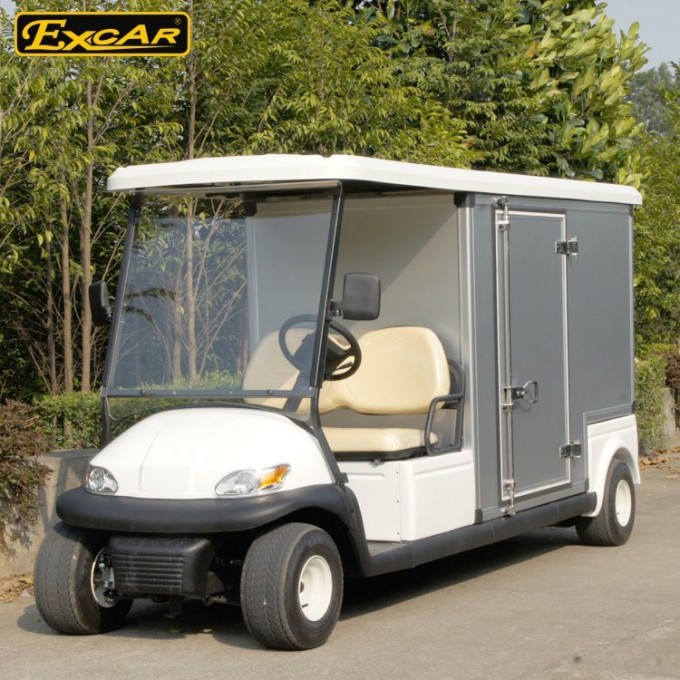

High Quality 2 Seats Electric golf Cart With Case
Steering & Suspersion
| Item | Description |
| Steering System | Self-adjusting rack and pinion steering system,
with automatic compensation function |
| Brake System | Rear wheel mechanical brake |
| Accelerator | Holzer type, stepless speed change |
| Front suspension | Mcpherson independent spring suspension |
| Rear suspension | Coil spring hydraulic shock absorber |
| Driving model | Rear axle two stage deceleration, motor direct driving |
| Wheel &Tyre | Aluminum wheel &USA Carlisle 18*8.5-8 6layers |
Dimensions
| Item | Description |
| Overall dimensions (L x W x H) | 3400x1200x1800mm |
| Ground clearance | 114mm |
| Wheelbase | 2300mm |
| Front wheel tread (mm) | 860mm |
| Rear wheel tread (mm) | 970mm |
Body and f
rame
| Item | Description |
| frame & Chassis | Aluminum alloy beam, bended |
| Body | PP engineering plastic front and rear body cover, injected |
| Roof | Glass fiber reinforced plastic |
| Windshield | Organic glass (PMMA), one-piece or two pieces |
| Roof supports | Imbedding black coating steel tube in the plastic support |
| Cushion | Reborn sponge with artificial leather and plastic bottom cover |
| Backrest | Reborn sponge with artificial leather and plastic cover |
| Armrest | Plastic |
| Floor mat | Anti-skidding rubber |
| Rear basket | Plastic |
| Golf bag holder | Plastic support with nylon strap |
| Dashboard | Black plastic material, battery power indicator, ignition key on it |
| Beverage holders | 4 pcs cups holders, 2 pcs for each side |
| Side trim | Plastic, black |
| Score card holder | On the steering wheel |
Option Accessories
To increase the sales value of our golf cart, we also provide many optio
nal accessories.
| Item | Option description | Item | Option description |
| 1 | E-key | 11 | 2-point seatbelt |
| 2 | Hinged windshield | 12 | Battery water refill system |
| 3 | Laminated windshield with wiper | 13 | Digital meter |
| 4 | Steel brush guard | 14 | EM brake |
| 5 | Front steel basket | 15 | Four wheel disc brake |
| 6 | Inner rear view mirror | 16 | Carlisle 205/50-10tyre with10inch wheel |
| 7 | Side rear view mirror | 17 | Ice box |
| 8 | Enclosure | 18 | Sand bottle |
| 9 | Sunshine cover | 19 | Sand rake |
| 10 | Golf bag cover | 20 | Ball washer |
Color Options
| Body colour | White | Grey | Sky blue |
| Dark blue | Red | Wine red |
| Green | Dark green | Yellow |
| Purple | Champagne | Black |
| These are the popular colours, but your customized color is available,just provide the right Panton No. color |
| Seat & Roof colour | Black | Beige | White |
Packing & Shipping
Excar golf cart will be packed in steel crate
| Model | Dimension(mm) | 20" container | 40" container |
| A1H2/CC | With roof & windshield | Without roof & windshield | With roof & windshield | Without roof & windshield | With roof & windshield | Without roof & windshield |
| 3400*1200*1900 | 3400*1200*1200 | 2 units | 4units | 6units | 12units |
Product show
FAQ
1.Can you customize the cart according to our special request?
Yes,we can customize the cart according to your request unless some complex parts we hard to make.
2.What is your MOQ?
You can order just 1 unit .But if your order is big, we will provide you with a discount.
3.Can we put the Logo we designed on the cart?
Yes, you can put your own Logo on the cart.
4.What is your lead time for production?
The typical lead time of our cart is 15 days.
5.What kind of warranty Excar provides?
Non-artificial damaged products,shifting for a year or one year repair
6.What's your payment term?
T /T 30% deposit and balance paid before shipment
Contact: Pauline Liu
Do
ngguan Excellence Golf&Sightseeing Car Co.,ltd
Mobile: +86-13546943585
Product Image
