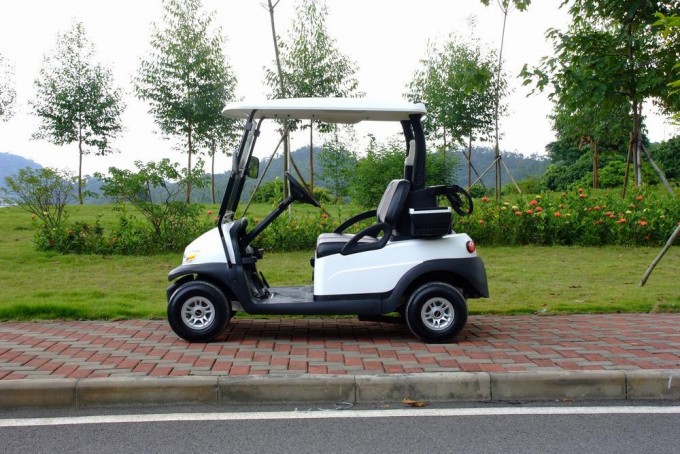

48V 4 Wheels 2 Seater Alum Chassis Electric Golf Cart

48V 4wheels 2seater Alum chassis electric golf cart

Product Description

Item	Description
System	DC system	AC system
Controller	Curtis controller 1266A-5201, 275A, imported from USA directly	Curtis controller 1234E-5221, 275A, imported from USA directly
Motor	ADC brand Separately excited DC motor 48V 3.7kw	ADC brand Separately excited AC motor 48V 3kw
Battery	Trojan battery, T875,8V*6pcs, imported from USA directly	Trojan battery, T875,8V*6pcs, imported from USA directly
Transaxle	Italian GRAZIANO axle with gear ration 1:12	Italian GRAZIANO axle with gear ration 1:16
Charger	High Frequency onboard charger 48V/17A regulator	High Frequency onboard charger 48V/17A regulator

Performance

Item	Description
system	DC system	AC system
Passenger Capacity	4	4
Climbing capacity(full load)	30%	35%
Max. forward speed	23km/h	45km/h
Endurance mileage	70-90km	80-90km
Charging time	8-10 hours	8-10 hours
Max. loading weight	360kgs	360kgs
Min. turning radius	2.9m	2.9m
Max. movement after brake at speed of 20km/h	≤4m	≤4m

* 1) based on the test conditions: 20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;
2)Range will vary depending on temperature, grade, payload and driving style.
Dimensions

Item	Description
Overall dimensions (L xW xH)	2921x1219x1727mm
Ground clearance	114mm
Wheelbase	1670mm
Front wheel tread (mm)	860mm
Rear wheel tread (mm)	970mm

Body and frame

Item	Description
frame &Chassis	Aluminum alloy beam, bended
Body	PP engineering plastic front and rear body cover, injected
Roof	Glass fiber reinforced plastic
Windshield	Organic glass (PMMA), one-piece or two pieces
Roof supports	Imbedding black coating steel tube in the plastic support
Cushion	Reborn sponge with artificial leather and plastic bottom cover
Backrest	Reborn sponge with artificial leather and plastic cover
Armrest	Plastic
Floor mat	Anti-skidding rubber
Rear basket	Plastic
Golf bag holder	Plastic support with nylon strap
Dashboard	Black plastic material, battery power indicator, ignition key on it
Beverage holders	4 pcs cups holders, 2pcs for each side
Side trim	Plastic, black
Score card holder	On the steering wheel

Electric System

Item	Description
Lights	48V, LED headlight (includes turning light and position light), LED taillights (includes brake lights and turning light),
Horn	Electric horn, 48V
Reverse buzzer	Electric, 48V
Combination switch	Control the lights and horn
Digital Meter (optional)	Including kilometer indicator, speed indicator, overload indicator, parking brake indicator, clock

Steering &suspersion

Item	Description
Steering System	Self-adjusting rack and pinion steering system, with automatic compensation function
Brake System	Rear wheel mechanical brake
Accelerator	Holzer type, stepless speed change
Front suspension	Mcpherson independent spring suspension
Rear suspension	Coil spring hydraulic shock absorber
Driving model	Rear axle two stage deceleration, motor direct driving
Wheel &Tyre	Aluminum wheel &USA Carlisle 18*8.5-8 6layers

Option Accessories
To increase the sales value of our golf cart, we also provide many optional accessories.

Item	Option description	Item	Option description
1	E-key	11	2-point seatbelt
2	Hinged windshield	12	Battery water refill system
3	Laminated windshieldwith wiper	13	Digital meter
4	Steel brush guard	14	EM brake
5	Front steel basket	15	Four wheel disc brake
6	Inner rear view mirror	16	Carlisle 205/50-10 tyre with10inch wheel
7	Side rear view mirror	17	Ice box
8	Enclosure	18	Sand bottle
9	Sunshine cover	19	Sand rake
10	Golf bag cover	20	Ball washer

about US

Dongguan Excellence Golf &Sightseeing Car Co., Ltd. (Excar) is ahigh technological company with our own research and development department. Our factory is located in the Liuwuxiang Industry Zone, at the east of Songshang Lake Road and the north of Guanshen Highway. It enjoys superior location and convenient transportation.
Excar focuses on researching, developing and manufacturing electric cars in the field of four-wheel electric cars. For golf cars and sightseeing cars, we have great confidence that we could make it better and better to meet the needs of our clients.
Refer to the specification standards of imported electric cars, we designed and created anew series of golf cars named Discovery for Chinese golf course especially.
Excar is devoted to before and after sale services and setting up service centers to support our customers. One of our duties is to supply exchangeable parts and technical support for golf cars of E-Z-GO and club cars. We are always ready to serve every golf course sincerely.

Our Service

1.For all your inquires about us or our products, we will reply you in detail within24 hours.

2.We offerOEM services. Can print your own logo on product ,can customize the electrical golf cart body colour and other things.

3.We have sales who have engage in LED about8yearsto help you custom-made the sales solution.

4.We have engineers who has the experience inToyotafor car's engineering projects to help yousolve all the problems of technical.

FAQ

Q:Are you factory or trading company?

A:We are factory in Dongguan City, Guangdong Province,China.Near Shenzhen or Guangzhou.

Q:What kind of certificate you have?

A:ISO9001 Certification, CE Certification, Will get the electric golf cart EEC Certification in 2017.Manufacture license of special equipment and ERP Program Management.

Q:What is the lead time of the product?

A: Generally 7-15 days after getting the deposit.

Q:How about the payment term?

A: T/T, by cash, western union, or L/C.

Q:How about the warranty term?

A:1 year warranty,offer FREE components under EXW shipped term.
