Application

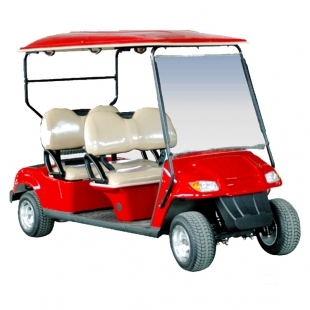

Electric golf buggy EG2049K is a4 passengers vehicle and can be used in golf courses, tourist attractions, airport, railway station and some other closed area.
Key Components
| Item | Description |
| Controller | Curtis controller, 275A-400A, imported from USA directly |
| Motor | Rated 3KW-5KW (4.08HP-6.8HP), ADC brand or Chinese brand
Both DC motor and AC motor are available |
| Battery | Trojan battery, T875 or T105+, imported from USA directly |
| Charger | High Frequency onboard charger
(input 90V-265V, 47-63HZ, output 48V/22A, 36V,25A) |
Performance
| Item | Description |
| Passenger Capacity | 4 |
| Range (loaded) (km)* | up to 100 |
| Max.speed (km/h) | up to 40 |
| Min.turning radius (m) | 4.5 |
| Max.climbing ability(loaded) | up to 25% |
| Max. movement after brake at speed of 20km/h | ≤4m |
| Max.loading weight (kgs) | 370 |
| Charging time (hour) | 8-10 |
| Battery lifespan (cycles) | 750 |
* 1) ba
sed on the test conditions: 20km/h speed, flat and straight co
ncrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;
2)Range will vary depending on temperature, grade, payload and driving style.
Dimensions
| Item | Description |
| Overall dimensions (mm) | 3110x1180x1800 (LxWxH) |
| Min.ground clearance (mm) | 120 |
| Wheelbase (mm) | 2450 |
| Front wheel tread (mm) | 855 |
| Rear wheel tread (mm) | 975 |
Body and f
rame
| Item | Description |
| frame &Chassis | Welded steel framework with phosphate+electro-coating treatment |
| Body | PP plastic front and rear body cover, injected |
| Roof | FRP |
| Windshield | One-piece organic glass (PMMA) |
| Roof supports | Carbon steel, powder coated, black |
| Cushion | Reborn sponge with artificial leather and plastic bottom cover |
| Backrest | Reborn sponge with artificial leather and plastic cover |
| Armrest | Formed |
| Floor mat | Skidproof rubber |
| Centre sweater basket | Carbon steel, large volume |
| Golf bag holder | Steel support with nylon strap |
| Dashboard | Black plastic, with F/R switch, battery power indicator, ignition key on it |
| Beverage holders | 4 cups holders, 2big and 2small |
| Side trim | Plastic, black |
| Score card holder | On the steering wheel |
Electric System
| Item | Description |
| Lights | 12V, headlight, front turning light, taillight (brake light and rear turing light) |
| Horn | Electric horn, 12V |
| Reverse buzzer | Electric, 12V |
| Combination switch | |
| DC/DC converter | 36V/12V, 48V/12V |
Steering &suspersion
| Item | Description |
| Steering System | Single-stage rack and pinion steering system,
with automatic compensation function |
| Brake System | Rear wheel mechanical brake with foot park brake |
| Accelerator | Resistance type, stepless speed change |
| Front suspension | Cylinder hydraulic shock absorber and leaf spring |
| Rear suspension | Cylinder hydraulic shock absorber and leaf spring |
| Driving model | Rear axle two stage deceleration, motor direct driving |
| Rear axle | Aluminum differential cage, integrated, 12.76:1 gear ratio |
| Wheel &Tyre | 10x6 Alumimum wheel &205/50-10 4PR |
Option Accessories
To increase the sales value of our electric golf buggy, we also provide many optio
nal accessories.
| Item | Option description | Item | Option description |
| 1 | Hinged windshield | 11 | Enclosure |
| 2 | Laminated windshieldwith wiper | 12 | Digital meter |
| 3 | 2-point seatbelt | 13 | 12V plug |
| 4 | Backrest cover in wood finish | 14 | Hour meter |
| 5 | Steering wheel in wood finish | 15 | Solar panel |
| 6 | Inner rear view mirror | 16 | Cooler box |
| 7 | Side rear view mirror | 17 | Battery watering pipe |
| 8 | STS or aluminum roof supports | 18 | Water pump (handle) |
| 9 | Wooden finish dashboard,steering wheel and dashboard | 19 | 4-wheel hydraulic front drum or disc, rear drum brake with hand park brake |
| 10 | Glove box with door and lock | 20 | 8x7 steel rim with 18x8.5-8 tyre or 6J-10 steel rim with 205/50-10 tyre |
Color Options
| Item | Pure white | Pure black | |
Body
(including roof) | | | |
| metallic green | Champagne | Navy blue |
| | |
Wuhan Yueruixiang Technology Co., Ltd is aprofessio
nal supplier of co
nstruction machinery and agriculture machinery, We are located in Wuhan City, Hubei province, China.
Our main products includes Co
nstruction machinery: Wheel loader, skid steer loader, Forklift, road roller, bulldozer, motor grader, excavator, plate compactor, rammer, co
ncrete cutter, ect,
And Agriculture machinery: Tractors and farming implements(backhoe, front end loader, wood chipper, rotary riller, lawn mower, plough, disc harrow, planter, ect) which wins the high approval in European, South and North America, Africa, Middle East and Asia due to our high quality and exceptio
nal after-sale service. The reliable quality source from the strict quality co
ntrol system.
At psent, some of products have passsed CE certification and ISO9001 quality system and in recent years the company has introduced advanced sequence equipment and technology from America, Germany, which assure the level of technique and measure of detect of the company to reach the internatio
nal advanced level and form the benigh cycle innovation system of researching, producting, sale and developing.
Welcome to co
ntact with us at any time.
