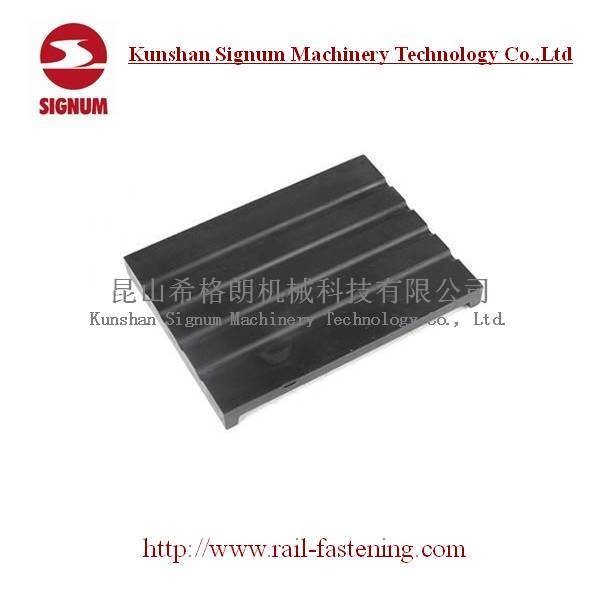

Rail Rubber Pad and Rail Pad for Railway Track Fastening

Rail pads are widely used in the railway fastening system. They are placed between the steel rail and the sleepers or tie plates for the purpose of eliminating the shocks and vibration caused by passing train. With the elasticity characteristics of rubber and eva and hdpe material, rail pad can keep the closed contacting with the rail above and the sleeper and tie plate underneath.

Not only for the advantages of above mentioned points, the rail pad can perform the function as below:
Load distribution for the passing train on rail
Elimination of load concentration and stresses
Absorption of uneven contact surfaces between rail and support
Reduction of noise and vibration

We can supply wide range of rail pads from trams and heavy hauled lines, as well as all standard gauge rail tracks. Including rail pads for E type rail fastening systems and SKL type rail fastening systems

We have three kinds of materials for produciton of rail pads: HDPE, EVA and Rubber. Below are the differences of the three rail pads differences.

HDPE:

Technical Parameter	Unit	Technical Requirement	Value
Density	g/cm3	0.95-0.98	0.95
Tensile Strength	Mpa	≥19	19
Elongation	%	>80	150
Melting Point	ºC	170-190	190
Insulation Resistance	Ω	≥1×1010	3.5 ×1010
Hardness	A	≥98	98(A)

EVA: Polyethylene 80%, Vinyl Acetate 20%.

Technical Parameter	Unit	Technical Requirement	Value
Density	g/cm3	0.95-0.98	0.95
Tensile Strength	Mpa	≥15	16
Elongation	%	>500	550
Melting Point	ºC	170-190	170
Insulation Resistance	Ω	≥1×1010	5.0 ×1010
Hardness	A	≥90	92(A)

Rubber

Technical Parameter	Unit	Value
Stiffness	KN	90-130
Hardness Shore A	ºC	72-80 degree
Electronic Resistance	Ω	≥ 106
Tensile Strength before Aging	Mpa	≥12.5
Elongation before Aging	%	≥250

Kunshan Signum Machinery Technology Co.,Ltd is a professional supplier of rail rubber pad and rail pad.

We can provide railway fastening products according to customers drawings and samples.Our main products are as following:

1. Screw spike, Coach screw, Drive screw, Sleeper screw, Dog spike, Railroad spike, Lock spike, Cut spike,etc.

2. Rail clip, Tension clamp,SKL clip, Pandrol clip, Deenik clip.

3. Swivel bolts, Track bolt, Special bolts, U bolts, J bolts, Anchor bolts, Foundation bolts, Stud bolts, Rod bolts, Curved bolts, Tunnel bolts.

4. Tie plate, base plate, Rail plate, Rail fixing base, Rail Pads, Sole plate, Sole pad

5. Fish plate, Joint bar, Rail joint, Splice bar.

6. Track bolt, T bolt, Rail bolt, Clamp bolt, Inserted bolt, Clip bolt, Fish bolt, Square bolt, Rod bolt, rail joint bolt.

7. Clamp plate, Rail spring clamp, Anchor plate, Steel clip.

8. Rail Shoulder, Rail sleeper Inserts, Rail Anchors for rail sleepers.

9. Plastic dowel, Guide plate, Nylon insert.

10. Chinese Standard Steel Rail: GB/T11264-89 9kg 12kg 15kg 22kg 30kg steel light rail; Q/YYG001-2008 (formerly YB222-63) 4kg 8kg 18kg 24kg steel light rail. GB2585-2007 38kg 43kg 50kg 60kg 75kg steel heavy rail. YB/T5055/93 QU70 QU80 QU100 QU120 crane rail.

11. German Standard Steel Rail: DIN536 A45 A55 A65 A75 A100 A120 A150 Crane Rail.

12. American Standard Steel Rail: ASTM-A1 ASCE25, ASCE30, ASCE40, ASCE60,ASCE75,ASCE85,90RA,115RE,136RE,175LBs Steel Rail.

13. British Standard Steel Rail: BS11-1985 BS50O,BS60A,BS60R,BS70A,BS75A,BS75R, BS80A,BS80R,BS90A, BS100A, BS113A.


We can make products as per customers' drawings and samples.
