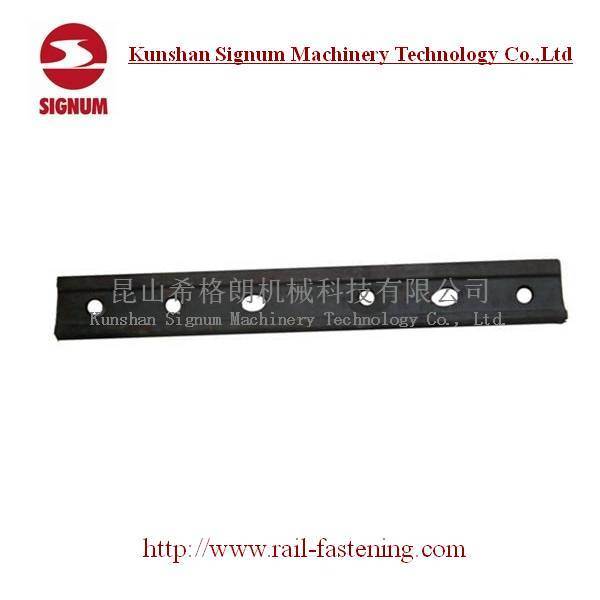

115re 132re 136re Rail Joint Bar

Rail joint bars connects the ends of two rails to fasten them together. The top and bottom edges are tapered inwards so the device wedges itself between the top and bottom of the rail when it is bolted into place. In rail transport modelling, a fishplate is often a carbon steel plate that slips onto both rails to provide the functions of maintaining alignment and electrical continuity.

There are 2 pieces of rail fish plate with 4 pieces of bolts& Nuts& Washers in one fish plate set.

Type	Length /Diameter	Weight(Kg)
115RE	4 hole- 24″	17.04
115RE	6 hole -36″	25.56
132-136RE	4hole-24″	17.75
132-136RE	6hole-36″	26.63
UIC60	4 hole - 630/dia.26	18.07
UIC60	4 hole-600/dia.28	17.47
UIC60	4 hole - 630/dia.25	18.1
UIC54	4hole	14.34
UIC54	6hole- 800	19.94
BS80A	4hole	6.5
BS90A	685.8 / dia.26	13.23
BS90A	792.9/dia.26 .2	15.34
90/91LB	4 hole	18.08
90/91LB	6hole	19.9
50Kg	4hole	14.3
50Kg	6hole	19.5
BS75R	4hole	6.56
BS60A	4hole	5.61
S49	4 hole	9.71

Kunshan Signum Machinery Technology Co.,Ltd is a professional supplier of 132RE 136RE rail joint bar.

We can provide railway fastening products according to customers drawings and samples.Our main products are as following:

1. Screw spike, Coach screw, Drive screw, Sleeper screw, Dog spike, Railroad spike, Lock spike, Cut spike,etc.

2. Rail clip, Tension clamp,SKL clip, Pandrol clip, Deenik clip.

3. Swivel bolts, Track bolt, Special bolts, U bolts, J bolts, Anchor bolts, Foundation bolts, Stud bolts, Rod bolts, Curved bolts, Tunnel bolts.

4. Tie plate, base plate, Rail plate, Rail fixing base, Rail Pads, Sole plate, Sole pad

5. Fish plate, Joint bar, Rail joint, Splice bar.

6. Track bolt, T bolt, Rail bolt, Clamp bolt, Inserted bolt, Clip bolt, Fish bolt, Square bolt, Rod bolt, rail joint bolt.

7. Clamp plate, Rail spring clamp, Anchor plate, Steel clip.

8. Rail Shoulder, Rail sleeper Inserts, Rail Anchors for rail sleepers.

9. Plastic dowel, Guide plate, Nylon insert.

10. Chinese Standard Steel Rail: GB/T11264-89 9kg 12kg 15kg 22kg 30kg steel light rail; Q/YYG001-2008 (formerly YB222-63) 4kg 8kg 18kg 24kg steel light rail. GB2585-2007 38kg 43kg 50kg 60kg 75kg steel heavy rail. YB/T5055/93 QU70 QU80 QU100 QU120 crane rail.

11. German Standard Steel Rail: DIN536 A45 A55 A65 A75 A100 A120 A150 Crane Rail.

12. American Standard Steel Rail: ASTM-A1 ASCE25, ASCE30, ASCE40, ASCE60,ASCE75,ASCE85,90RA,115RE,136RE,175LBs Steel Rail.

13. British Standard Steel Rail: BS11-1985 BS50O,BS60A,BS60R,BS70A,BS75A,BS75R, BS80A,BS80R,BS90A, BS100A, BS113A.


We can make products as per customers' drawings and samples.
