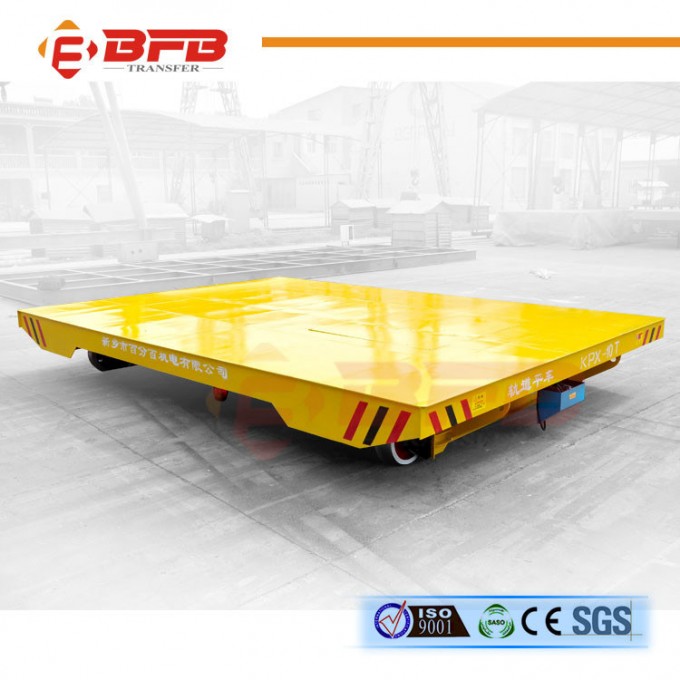

Heavy Load Automated Handling Trolley (KPX-10T)

Heavy Load Automated Handling Trolley (KPX-10T)
KPX series' automated handling trolley---- it is powered by storage battery, it is our specialized research, Simply speaking, it is an electric cart. Compaired with KPD, It has no limited distance; Compaired with others, it is simple operation and structure, But its main source powered is battery, we also choose maintanence free battery to export, which make the running more convenient. its lifetime reachs to about 2.5 years, about this, it is popular in many foreign countries like South Aferican ,Germany , Turkey etc.Our company have professional team and utilize more advanced technique to make it.
ApplicationShowing
KPX seires' railroad handling trolley can be used in many ocassions, due to its simple structure, wherever in the plant or assembly line,only exists track, and the battery is charged fully,it can transport anywhere.Compaired with KPJ,KPT,KPC, it is not so complicated.Compaired with KPD, it is not so strict requiremnt,Therefore it is also the reason why many buyer like to purchase it.


Character Showing

Simple structure

Anti-explosion

Anyi-high temperature

Safe devices are installed

Customization can be supported

Long lifetime (about 2.5 years)

Stable start

Big starting power

Small impact to the geer reducer

Low voltage

Regular maintenance

Charge 750 times, reduce 1/3 lifetimeWorking Principle
KPX series' railroad handling trolley isbattery powered . The battery is installed in the carts. The batteries supplied the electricity to the DC motor through the electrical control system. By this ways, we can make the flat cart to start, stop, go forward , back ward , adjust the speed and so on.


Technique Parameter

Model	KPX-10T
Rated Load(t)	10
Table Size(mm)	3600*2000*500
Wheel base(mm)	2600
Rail Gauge(mm)	1435
Wheel Diameter(mm)	350
Wheel Quantity	4
Ground Clearance(mm)	50
Running Speed(m/min)	0-25
Motor Power(Kw)	1.6
Battery Capacity(Ah)	160
Battery Voltage(V)	48
Running Time When Full Load	4.8
Running Distance for One Charge(Km)	7.2
Max Wheel Load(KN)	42.6
Reference Weight(t)	4.2
Recommended Rail Model	P18

Our Company----BEFANBY


Xinxiang Hundred Percent Electrical and Mechanical Co., Ltd is a collection of research, design, manufacture, installation and after-sales service of electric handling bogie ,transfer carts as one of the professional manufacturing company, which has a modernized management team and excellent staff.And our prodcuts gets CE, SASO,SGS,ISO certificate and other 8 national patent, our products have been exported to more than 40 countries and regions,such as Germany, Mexico, USA, Turkey, South Africa, Singapore etc.
Our Customer


Why choose us

Production Supply Scope

Product Name	Model No.	Power Supply Mode	Load Capacity	Other Items	Usage
Rail Transfer Cart	KPD	Conductor Rail	Load range 1-300ton, can be customized per client demand	Running distance	Ordinary goods,such as steel plate, workpiece,equipment etc special goods,such as coil. column,ladle etc
Battery Powered Transfer Car	KPX	Battery		Using frequency
Motorized Transfer Trolley	KPJ	Cable Drum		Running distance
Busbar Powered Handling Cart	KPC	Busbar		Working shop
Towed Rail Trailer	KP	Tractor	1-100t	Working shop
Steerable Towed Car	BWT	Tractor	Load range 1-50t, less than 20t, cement floor is ok. More than 20t,steel floor is demanded.	Working environment
Trackless Handling Machine	BWP	Battery		Working path

How to choose suitable transfer trolley?
All of our transfer carts all customized as client's requirement, for choose the most suitable transfer trolley,please kindly providing the following information:Transfer or handling what material/cargo?What capacity do you need?This trasnfer trolley is running on rails or ground(floor)?Your requirment for table size:length,width and height?How about the running distance?How many working hours in per day?Our After Service

• The load bearing safety factor of the trolley is no less than 120%.
• Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material
• 16 hours engineering service and 24 hours internet service for our customers
• During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.
• Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.
