1. Introduction of heavy material handling vehicle
PERFECT'stransfer carts, also known as cross flat cart, transfer trolley,electric flat cart, have advantages as simple structure, easy operation and maintenance,large load capacity and so on,with which these transfer carts are widely used in machine manufacturing and metallurgical factory matching up with lift cranes to transport heavy objects warehouse across.The rail transfer carts are suitable for various industries, steel mill and factory, paper roll plant,painting room,shipbuilding,new factory building project,machine processing line,heavy industry, airport and so on to transfer or handling material and equipment from one place to another, from warehouse to workshop.

2. Customized ofheavy material handling vehiclePERFECT is specialized in designing and manufacturing of heavy duty Material Transfer Cart:
Transfer Cart: Trackless transfer car, Battery operated transport trolley, Coils cart, Ladle transfer cart, Hydraulic scissors lift table cart etc.
Rail Cart:Rail transfer cart, Cross-rail transport trolley, Curved rails transfer cart, S shape railway transport cart, L shape track transporter etc.
Industrial Trailer:Flatbed trailer, Factory trailer, Utility trailer, Workshop transfer trailer, Airport baggage cargo trailer, Car transport trailer, Motorized transfer trailer etc.
Cargo Transportation: Die cart, Coils transport cart, pipes transfer carriage, steel beam transporter, aluminum plate transport vehicle, transformer carrier bogie
Special Handling Equipment: Ladle transfer trolley, Ferry Transfer wagon, Cross-rail transport equipment, Motorized turntable, Vacuum furnace transfer cart, Automatic vehicle etc.


3. Application of heavy material handling vehicleUses of Material Transfer Cart:
For horizontal load transfers of a wide range of material, we have the heavy duty, high quality Transfer Cart solution you need. Transfer carts are used: to carry loads along assembly lines; transfer material from one work station to the next; store and transport an entire shift worth of production. They can even be used as a stable yet moveable machine base. With four different styles and standard capacities up to 60 tons, we have the solution you need and each style can be designed for your specific application.


4. Applicable sites of heavy material handling vehicle
PERFECT conceives and manufactures a wide range ofrailway guided transfer carts, battery poweredtrolleys, intelligentself-propelled trolleys, die carts, industrial flat trailers, tiltersand lifting platformsthat operate in manyindustrial fields: metallurgy, manufacture, oil andgas, die shops, shipyards, chemical plant, automotive, mining industry, aerospace, power generation,coal industry,paper mills, metalworking, warehouse and many others!


5. Parameter of heavy material handling vehicle

Model		BXC-2t	BXC-20t	BXC-50t	BXC-100t	BXC-150t
Rated Load(t)		2	20	50	100	150
Table Size (mm)	Length(L)	2000	4000	5500	6500	10000
	Width(W)	1500	2200	2500	2800	3000
	Height(H)	450	550	650	900	1200
Wheel base(mm)		1200	2800	4200	4900	7000
Rail Inner Gauge(mm)		1200	1435	1435	200	2000
Wheel Diameter(mm)		270	350	500	600	600
Running Speed(m/min)		0-25	0-20	0-20	0-20	0-18
Motor Power(kw)		1	2.2	5	10	15
Battery Capacity		180	180	330	440	600
Battery Voltage		24	48	48	72	72
Running Time When Full Load		4.32	4	3.3	3.2	2.9
Running Distance for One Charge(km)		6.5	4.8	4	3.8	3.2
Recommended Rail Model		P15	P24	P43	QU100	QU100

6. Power supply mode of heavy material handling vehicle
The motorized material handling equipment manufactured by Henan PERFECT Handling Company can be designed with different power supply mode, which include storage battery, cable, conductive rails, and so on. According to customers'different application environment, we would recommend the best suitable transfer solution with different power supply mode:
Storage Battery Powered Transfer carts: This kind motorized transfer carts powered by battery is suitable for long running distance, low using frequency, "S""L"and curved tracks, anti-explosion and ferry occasion.
Cable reel powered transfer cart on rails: Thiskind electric flat transfer carts powered by cable is most used in occasion with high using frequency, short running distance, straight direction route.
Conductive track powered motorized transport trolleys: This kind material automated transport trolleys get power from the conductive tracks installed on the floor. These transport trolleys are suitable for high using frequency and large loading capacity. It has strict requirements about the track installation which need to be insulated.
Steerable transfer carts: These steerable transfer carts apply to multidirectional heavy duty transportation on cement floor and steel plate with rotation required. They can turn freely in 360°degree to change the moving direction. So they are powered by battery which won't be affected by the trailing cable during running in small or limited space.

7. Our Factory and Customers' visit


8. Q&A
What Are The Advantages of Using a Transfer Cart?
For smaller loads, manual carts can be dedicated to specific work place activities such as shuttling materials. This often makes the carts more available for use. Transfer carts are more accommodating for moving long loads through restrictive passage ways or doorways. For heavier loads transfer carts are an excellent affordable choice for their ability to handle heavy loads. Transfer carts are compact in design and work well in areas with limited floor area. Another advantage over lift trucks is how the cart deck can be customized to suit specific loads.
What Product Handling Applications Use Transfer Carts?

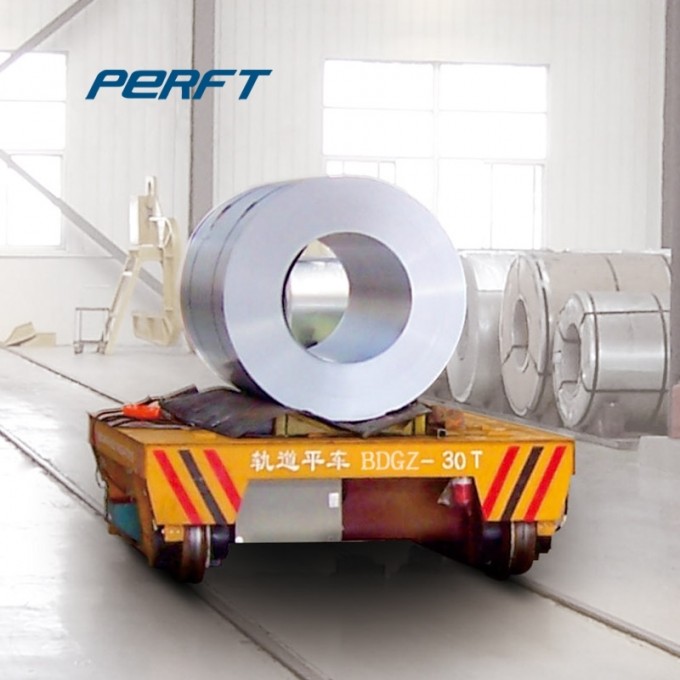

1. Coils (V-Groove deck)
2. Tanks (size/stability for uniformly distributed loads)
3. Assemblies (fixture cradle) for a complete build or to send a partially completed product to the next station (tractors, heavy equipment machinery)
4. Sub-Assembly shuttle from one line to another line
5. Maintenance cart for motors and pumps
6. Equipment support (stand-off deck) for navigating loads to locations with a plant facility
7. Material shuttle for steel tubing (flat decking with guard rails)
8. Elevating platform for assembly process (integrated screw-jack table)
9. Sand casting (flat decking)
How can Transfer Carts be customized?
Please tell us:
Whatload or product will be transferred onto the cart?
What is the weight of the heaviest lift or load?
What are the dimensions? (Length; Width ; Height)
What is the trip time and frequency? (# of Trips per , Shifts per day:)
What is the travel area you need to cover? (Rail/cement floor, Indoor/Outdoor, straight line travel, etc)
What is the distance to travel?
Other relevant information or using condition.
