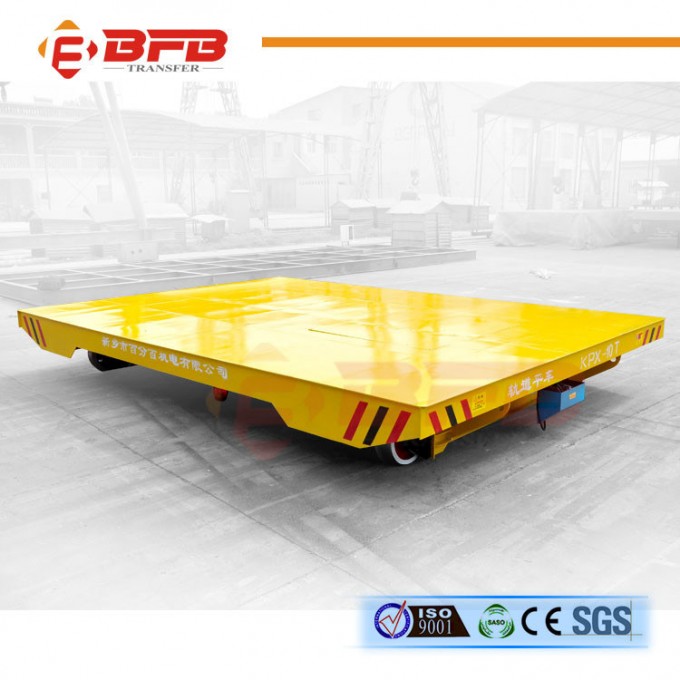

KPX series' electric transfer trolley ---- it is powered by storage battery, it is our specialized researchement, Simply speaking, it is an electric cart. Compaired with KPD, It has no limited distance; Compaired with others, it is simple operation and structure, But its main source powered is battery, so it has the limitation of time, and the storage should be maintanced once a regular time, its lifetime reachs to about 2.5 years, about this, it is popular in many foreign countries like South Aferican ,Germany , Turkey etc.Our company have professional team and utilize more advanced technique to make it.


Application Showing----KPX----Electric Transfer Trolley Manufacturing
KPX seires' rail flat cart can be used many ocassions, Such as industry field(Steel plant/metallurgy Field); Chemical Industry(Copper Industry); Working Line; etc. due to its simple structure, wherever in the plant or assembly line,only exists track, and the battery is charged fully,it can transport anywhere.Compaired with KPJ,KPT,KPC, it is not so complicated.Compaired with KPD, it is not so strict requiremnt,Therefore it is also the reason why many buyer like to purchase it.


Character Showing----KPX----Electric Transfer Trolley Manufacturing

Simple structure

Anti-explosion

Anti-high temperature

Safe devices are installed

Customization can be supported

Long lifetime (about 2.5 years)

Stable start

Big starting power

Small impact to the geer reducer

Low voltage

Regular maintenance

Charge 750 times, reduce 1/3 lifetimeParts Showing----KPX----Battery Powered Rail Flat Cart


Working Principle----KPX----China Made Electric Transfer Trolley ManufacturingKPX series' flat cart is battery powered . The battery is installed in the carts. The batteries supplied the electricity to the DC motor through the electrical control system. By this ways, we can make the flat cart to start, stop, go forward , back ward , adjust the speed and so on.
Technique Parameter----KPX----Battery Powered Rail Flat Cart

Model		KPX-2t	KPX-5t	KPX-10t	KPX-16t	KPX-20t	KPX-25t	KPX-30t	KPX-40t	KPX-50t	KPX-63t	KPX-80t	KPX-100t	KPX-150t
Rated Load		2	5	10	16	20	25	30	40	50	63	80	100	150
Table size	Length(L)	2000	3500	3600	4000	4000	4500	4500	5000	5500	5600	6000	6500	10000
	Width(W)	1500	2000	2000	2000	2200	2200	2200	2500	2500	2500	2600	2800	3000
	Height(H)	450	500	500	550	550	600	600	650	650	700	800	900	1200
Wheel base		1200	2500	2600	2800	2800	3200	3200	3800	4200	4300	4700	4900	7000
Rail Inner Gauage		1200	1435	1435	1435	1435	1435	1435	1435	1435	1435	1800	2000	2000
Wheel Diameter		270	300	300	350	350	400	400	500	500	600	600	600	600
Wheel Quantity		4	4	4	4	4	4	4	4	4	4	4	4	8
Ground Clearance		50	50	50	50	50	50	50	50	50	75	75	75	75
Running Speed		25	25	25	20	20	20	20	20	20	20	20	20	18
Motor Power		1	1.2	2	2.2	3	3.5	4	5	6.3	8	10	15	15
Battery Capacity		180	180	160	180	180	250	250	300	330	400	400	440	600
Battery Voltage		24	36	48	48	48	48	48	48	48	48	72	72	72
Running Time When Full Load		4.32	5.4	4.8	4.3	4	4	3.5	3.6	3.3	3	3.6	3.2	2.9
Max Wheel Load		14.4	25.8	42.6	64.5	77.7	94.5	110.4	142.8	174	221.4	278.4	343.8	265.2
Reference Weight		2.8	3.6	4.2	5.5	5.9	6.5	6.8	7.6	8	10.8	12.8	14.6	26.8
Recommended Rail Model		P15	P18	P18	P24	P24	P38	P38	P43	P43	P50	P50	QU100	QU100

Our Company


Xinxiang Hundred Percent Electrical and Mechanical Co., Ltd is a collection of research, design, manufacture, installation and after-sales service of electric handling bogie ,transfer carts as one of the professional manufacturing company, which has a modernized management team and excellent staff.And our prodcuts gets CE, SASO,SGS,ISO certificate and other 8 national patent, our products have been exported to more than 40 countries and regions,such as Germany, Mexico, USA, Turkey, South Africa, Singapore etc.
Our Advantage


Our Customer

Production Supply Scope

Product Name	Model No.	Power Supply Mode	Load Capacity	Other Items	Usage
Rail Transfer Cart	KPD	Conductor Rail	Load range 1-300ton, can be customized per client demand	Running distance	Ordinary goods,such as steel plate, workpiece,equipment etc special goods,such as coil. column,ladle etc
Battery Powered Transfer Car	KPX	Battery		Using frequency
Motorized Transfer Trolley	KPJ	Cable Drum		Running distance
Busbar Powered Handling Cart	KPC	Busbar		Working shop
Towed Rail Trailer	KP	Tractor	1-100t	Working shop
Steerable Towed Car	BWT	Tractor	Load range 1-50t, less than 20t, cement floor is ok. More than 20t,steel floor is demanded.	Working environment
Trackless Handling Machine	BWP	Battery		Working path

Our After Service

Our commitment:

The load bearing safety factor of the trolley is no less than 120%.

Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material

16 hours engineering service and 24 hours internet service for our customers

During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.

Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.
