Key Components
| Item | Description |
| Controller | Curtis controller, 400A, imported from USA directly |
| Motor | Rated power 5KW(6.8HP)DC motor,7.5KW (10.2HP)AC motor Chinese brand |
| Battery | Trojan battery, 12pcs T105+, imported from USA directly |
| Charger | 72V transfered smart charger, output 110V-240V,50-60HZ,out72V/25A |
Performance
| Item | Description |
| Passenger Capacity | 2 |
| Range (loaded) (km)* | up to 60 |
| Max.speed (km/h) | up to 50 |
| Min.turning radius (m) | 5 |
| Max.climbing ability(loaded) | up to 20% |
| Max. movement after brake at speed of 20km/h | N/A |
| Max.loading weight (kgs) | 1000 |
| Charging time (hour) | 8-10 |
| Battery lifespan (cycles) | 750 |
* 1) ba
sed on the test conditions: 20km/h speed, flat and straight co
ncrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;
2) Range will vary depending on temperature, grade, payload and driving style.
Dimensions
| Item | Description |
| Overall dimensions (mm) | 4580x1500x2150 (LxWxH) |
| Rear cargo bed dimensions (mm) | 2760x1500x550 (LxWxH) |
| Min.ground clearance (mm) | 150 |
| Wheelbase (mm) | 2370 |
| Front wheel tread (mm) | 1220 |
| Rear wheel tread (mm) | 1220 |
Body and f
rame
| Item | Description |
| frame & Chassis | Welded steel framework with sand blasting and painting |
| Cabin | Aluminum frame with FRP cover sheet and glass window |
| Front windshield | Laminated glass with wiper |
| Seat | Reborn sponge with artificial leather, highback |
| Floor | Skidproof leather |

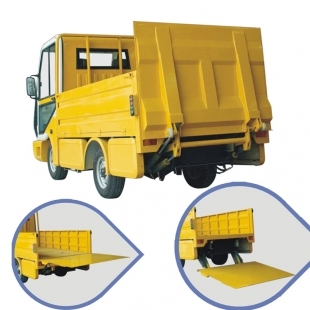

| Rear cargo bed | Steel side fender, hydraulic lifting tail gate |
| Battery sliding system | Steel frame with sliding wheel |
| Beverage holders | 1 cups holders |
| Side rear view mirror | 2pcs, manual adjustable |
Electric System
| Item | Description |
| Lights | 12V, headlight (H/L beam), front turning light,
Rear taillight (brake light and rear turing light) |
| Horn | Electric horn, 12V |
| Reverse buzzer | Electric, 12V |
| Combination switch | |
| DC/DC converter | 72V/12V |
| Audio system | Radio with MP3 receiver, with two waterproof speaker |
| Digital Meter | with Current meter, voltometer, speedometer and various indicators |
Steering & suspersion
| Item | Description |
| Steering System | Recirculating ball-type steering gear |
| Brake System | 4-wheel hydraulic drum brake with hand park brake, with vacuum booster |
| Accelerator | Resistance type, stepless speed change |
| Front suspension | non-independent suspension, cylinder hydraulic vibration absorber and leaf spring |
| Rear suspension | integrated rear end, steel plate spring suspension, cylinder hydraulic vibration absorber |
| Transmission system | Clutch, 4F+1R gear box, transmission shaft |
| Wheel & Tyre | 175R13C tubeless tire, 4J*13 steel rim |
Option Accessories
To increase the sales value of our refuse truck, we also provide many optio
nal accessories.
| Item | Option description |
| 1 | Rear steel bumper |
| 2 | Inner rear view mirror |
| 3 | Battery watering pipe |
| 4 | Water pump (handle) |
| 5 | 3-point seatbelt |
| 6 | Diesel heater for defrosting |
| 7 | Electric power system |
Color Options
| Item | Pure white | Pure black | Pearl red |
| Body | | | |
| Lake green | Industrial Yellow | Pearl White |
| | |
Packing & Shipping
Refuse trucks will be packed in steel crate
| Container loading qty | Assembled | Refer Picture |
| 20'ft GP | 1 | |
| 40'ft GP | 2 |
| 40'HQ | 2 |
