Electric Cross-Rail Ferry Car for Cargo Multidirectional Transportation

Electric cross-rail ferry car for cargo multidirectional transportation
Introduction of Ferry Car

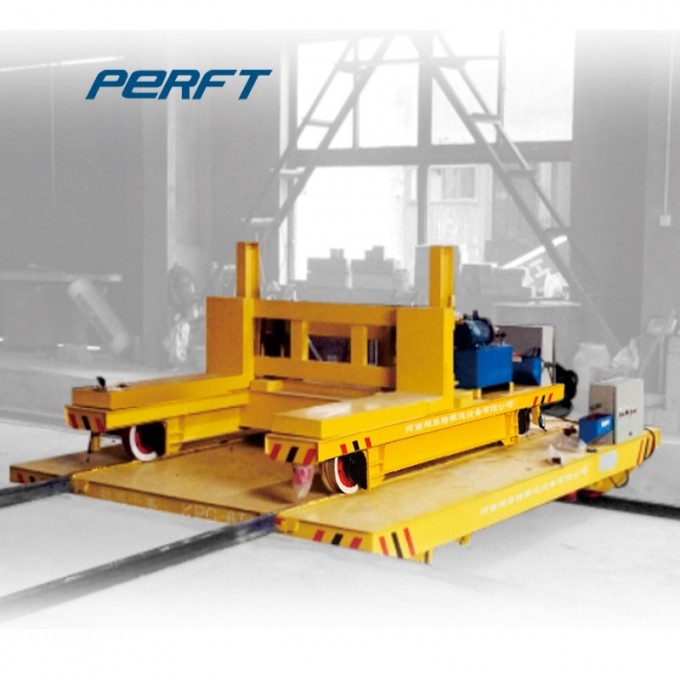

We called this type transfer cart as ferry transfer cart or traverser. The Ferry Caris made up of two parts. The upper car is used for transporting cargo. The down car is usually designed to run underground. The rail is mounted underneath the car and used for connecting with other rails in workshops which makes the upper car be able to run on parallel rails. The ferry cart can realize cargo transfer among crossing rails. It's more convenient and be used separately compared with rotating platform.


Transfer Solutions of X-Y Axis Transportation1. Ferry cart: Down carts run underground on the X Axis, Upper cart is used to transfer cargo on Y Axis. 2. Transfer cart with railway turntable: When the transfer cart run on the turntable, you can operate the turntable rotate to realize the joint of X & Y Axis rails. 3. Crossing rail transfer cart: This type transfer carts are equipped with two sets of wheels and with hydraulic lifting system. One sets of wheels is used for running on the X Axis rails and another set for the Y Axis rail.

Application of Ferry Car
Uses of Ferry Car:

The Ferry Carcan operate in manyindustrial fields: metallurgy, manufacture, oil andgas, die shops, shipyards, chemical plant, automotive, mining industry, aerospace, power generation,coal industry,paper mills, metalworking, warehouse and many others!
Transfer carts are used: to carry loads along assembly lines; transfer material from one work station to the next; store and transport an entire shift worth of production. They can even be used as a stable yet moveable machine base. With four different styles and standard capacities up to 60 tons, we have the solution you need and each style can be designed for your specific application.


Parameter of Ferry Car

Model		BXC-2t	BXC-20t	BXC-50t	BXC-100t	BXC-150t
Rated Load(t)		2	20	50	100	150
Table Size (mm)	Length(L)	2000	4000	5500	6500	10000
	Width(W)	1500	2200	2500	2800	3000
	Height(H)	450	550	650	900	1200
Wheel base(mm)		1200	2800	4200	4900	7000
Rail Inner Gauge(mm)		1200	1435	1435	200	2000
Wheel Diameter(mm)		270	350	500	600	600
Running Speed(m/min)		0-25	0-20	0-20	0-20	0-18
Motor Power(kw)		1	2.2	5	10	15
Battery Capacity		180	180	330	440	600
Battery Voltage		24	48	48	72	72
Running Time When Full Load		4.32	4	3.3	3.2	2.9
Running Distance for One Charge(km)		6.5	4.8	4	3.8	3.2
Recommended Rail Model		P15	P24	P43	QU100	QU100

Power supply mode of Ferry Car
According to customers'different application environment, we would recommend the best suitable transfer solution with different power supply mode:
Storage Battery Powered Transfer carts: This kind motorized transfer carts powered by battery is suitable for long running distance, low using frequency, "S""L"and curved tracks, anti-explosion and ferry occasion.
Cable reel powered transfer cart on rails: Thiskind electric flat transfer carts powered by cable is most used in occasion with high using frequency, short running distance, straight direction route.
Conductive track powered motorized transport trolleys: This kind material automated transport trolleys get power from the conductive tracks installed on the floor. These transport trolleys are suitable for high using frequency and large loading capacity. It has strict requirements about the track installation which need to be insulated.
