Automated Cross-Track Transporter Heavy Duty Rail Transfer Car

Automated cross-track transporter heavy duty rail transfer car
Introduction of Heavy Duty Rail Transfer Cart

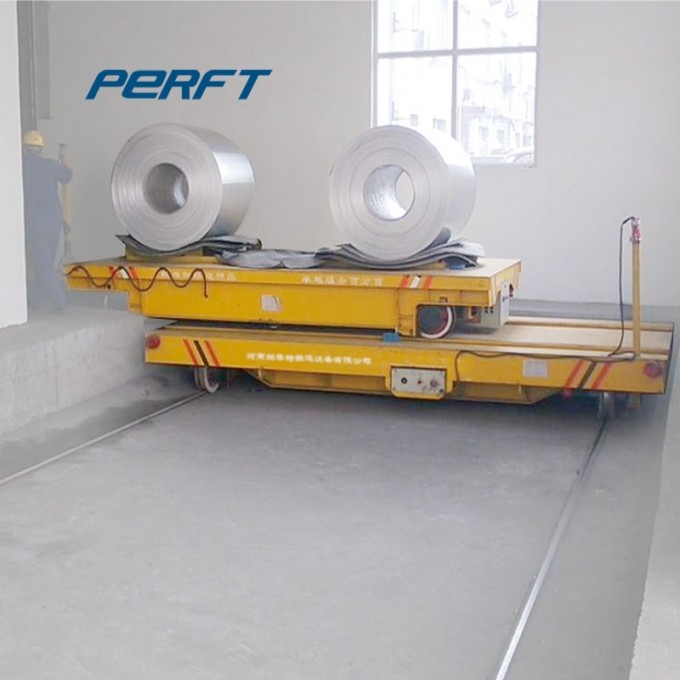

The ferry cart is made up of two parts. The upper car is used for transporting cargo. The upper can can be equipped with V shape support, lifting platform. The down car is usually designed to run underground. The rail is mounted underneath the car and used for connecting with other rails in workshops which makes the upper car be able to run on parallel rails. The ferry cart can realize cargo transfer among crossing rails. It's more convenient and could be used separately compared with rotating platform.



Features of Heavy Duty Rail Transfer Cart
----Low noise It causes low noise level.
----Maximum safety Offers guarantee of maximum safety for operators and for the material handled. We really care about the safety of everyone involved in the job.
----Easy for operation These transfer carts are easy to drive, so as soon as you get it you will be able to use it to transport your loads. We will support you to make the best out of your heavy load transporter.
---- Easy to implement into manufacturing processOperates on standard floors; Do not require complex or permanent installation
----Suitable for All Kinds of Weight Thebattery powered trolley is superb for handling both small and extremely huge loads for its modular fabrication and its high payloads: up to 300 ton for each trolley.

Product show ofHeavy Duty Rail Transfer Cart


Production Process of Heavy Duty Rail Transfer Cart
CNC Cutting
Transport the steel plate from raw material warehouse to CNC cutting workshop for cutting. After the cutting, the workers will do some simple processing such as chip moving and setting out.
Preliminary Assembling
Put the cut steel plate together according to the design drawing
Welding
Weld the steel plate with automatic welding machine after the pliminary assembling
Post weld treatment
Test the welding section after the welding, polish and burring. Post weld treatment to eliminate welding stress
Spray Primer
Transport the structure part after processing to painting booth for spraying primer. The main component of the primer is zinc rich epoxy antirust paint. The primer is to two layers
Assembling
Assemble the structure parts after spraying primer with wheels, motors and gear box, etc.
Paint finish
Transport the assembled cart to painting booth, inspect the integrity of primer. After that paint the finish
Debugging
Debugging the cart after painting the finish with electric control system, after the debugging, the cart will test without load. And after the no load test, the cart will be tested with load. After the inspection, the cart will be transported to storage area.


Production Supply Scope

Product Name	Model	Power Supply Mode	Load Capacity	Running distance	Usage
Rail Transfer Cart	BDG	Conductor Rail	We can design 1-300t load transfer cart. The load capacity and table size is customized according to the working condition and the client's requirements.	≤70m	Ordinary goods,such as steel plate, workpiece,equipment etc special goods,such as coil. column,ladle etc
Battery Powered Transfer Car	BXC	Battery		Unlimited
Cable powered Transfer Trolley	BJT	Cable Drum		≤50m
Electric Transfer Cart	BTL	Trailing Cable		≤20m
Busbar Powered Handling Cart	BHX	Busbar		Unlimited
Towed Rail Trailer	BP	Towed by other machine		Unlimited
Steerable Towed Car	BWT	Manually or towed by forklift or other machine	1-150t on cement or steel floor.	Unlimited
Trackless Handling Machine	BWP	Battery		Unlimited
