Detailed Description

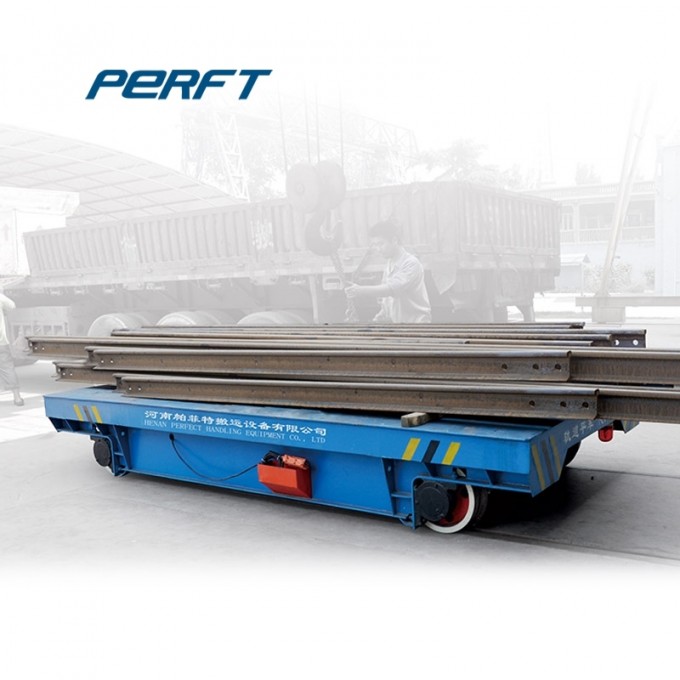

Facotry use battery powered 20t heavy cargo railroad transporter
Product Description----Railroad Transporter
Our line of Railroad Transporter are designed to accommodate the needs of awide range of industries such as steel, aluminum, automotive, stamping, heavy manufacturing and several others. These units are designed to operate on floor mounted rails and are used to transport heavy materials across crane bays or in areas not serviced by an overhead crane.
Application----Railroad Transporter
The battery powered railroad transporter is sutiable for all kinds of transport occassion since its travel distance is unlimited ad low requirement to the track. Due to advantage of without cable, the railroad transporter is mainly applied in assembly line, can realize the straight rail, Sshape rail, Ushape rail, Cshape rail, Arc-shaped rail, 90 degree turn rail,crossing rail etc.
Component----Railroad Transporter
The current is supplied to pulling motor through electric control system, which makes the railroad transporter start, stop, move forward, move backward, turn around or change speed, etc. The railroad is standard equipped the cart frame, wheels, motor, reducer, battery, charger and hand pendant. And the cart is also equipped with suchsafetydevice: buffer, alarm light, lifting hole,emergencystop button and radardetector.
Characters and Parameter----Railroad Transporter
| Model | BXC-2t | BXC-20t | BXC-50t | BXC-100t | BXC-150t |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 |
| Table Size (mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 |
| Height(H) | 450 | 550 | 650 | 900 | 1200 |
| Wheel base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 200 | 2000 |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 |
| Battery Capacity | 180 | 180 | 330 | 440 | 600 |
| Battery Voltage | 24 | 48 | 48 | 72 | 72 |
| Running Time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 |
| Running Distance for One Charge(Km) | 6.5 | 4.8 | 4 | 3.8 | 3.2 |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 |
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 |
Customized----Railroad Transporter
The railroad transporter can be designed with otherfunction, such as lifting platform, coils support, PLC automatic control, explosion-proof processing, ferry and so on.Our design is according to the client's working condition.
Our company
Working closely with you, we will incorporate our years of design experience into the final design of the product to assure complete customer satisfaction.
