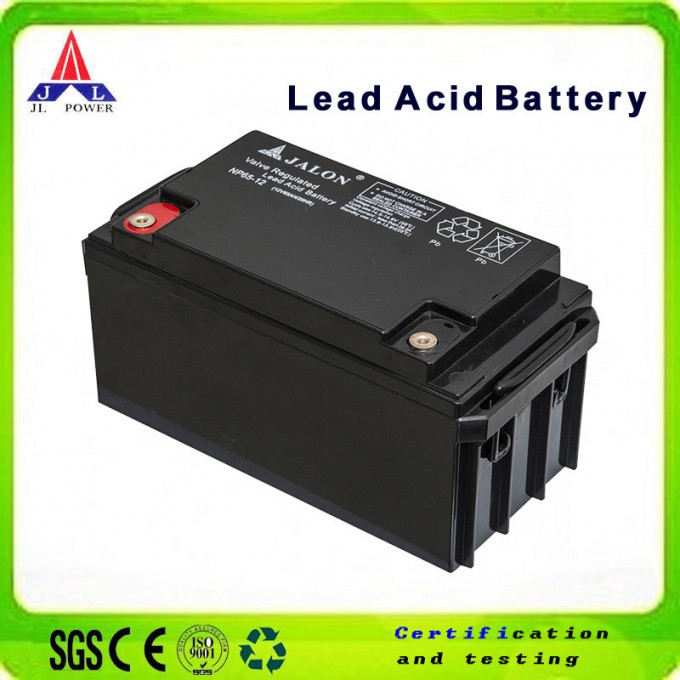

Seal Lead Acid Solar Power Battery 12V65ah

MORE DETAILS

Model:NP65-12
Size: 350*166*174mm
Weight :20.2 kg
Color :dark gray ,beige
Delivery time :7-15 days
Warranty: 3 years
Designed Service life: 5 years
Brand: JALON eFOX, OEM Acceptable
Certificate: CE, ISO, SGS

SPECIFICATIONS
Nominal Voltage		12 V
Rated Capacity (10 hour rate)		65 AH
Dimensions (Length*Width*Height)/mm		350*166*174mm
Weight Approx		20.2kg
CHARACTERIESTICS
Internal Resistance	Fully charged battery at 25° C		8 mΩ
Capacity affected by temperature (20 hour rate)	40° C 25° C 0° C -15° C		102% 100% 85% 65%
Self-Discharge At 25° C	Capacity after 3 month storage Capacity after 6 month storage Capacity after 12 month storage		91% 82% 64%
Terminal Type	T9 or T16
Charge (Constant Voltage)	Cycle use	Initial Charging Current less than 16 A Voltage 14.40~15.00V
	Float use	Voltage 13.50~13.80V

PACKING DETAIL



1PCS/CTN, Cartons with Pallet




BATTERY FEATURES

- Sealed and maintenance free operation
- Deep cycle long life design
- Safety valve installation for explosion proof.
- High quality and high reliability.
- Deep discharge recovery performance.
- Low self discharge characteristic.



MAIN APLLICATION


- Solar System
- UPS System
- Wind power sytem
- Cable Television, toy
- Communication Equipment
- LED light
- Emergency Power System
- Telecommunication equipment system
- Emergency lighting
- Security system




WHY CHOSE US

1. As a specialized manufacturer
We possess our own lead-plate production line, which is the core technology for Lead Acid Battery.
Most important, we adopt advanced green formation technology,which can greatly decrease the effect to the environment comparing to the tank formation technology.
With high tin ratio inside the lead plate, we can greatly increase the battery life cycle.

2. As a qualified supplier in the world
We possess the following certificateISO9001--Issued by SGS, ISO14001--Issued by SGS, OHSAS 18001, CE, UL and TLCWith completely quality control system and production management system,we do control the product quality and production efficiency very well.

3. As a mid-scale manufacturer in China
As a 200 employees company, we can not only support you with quick delivery but also satisfy you with customized service.

4. As a 17 years history factory
We can support you esteemed company with experienced professional team and reputable market reputation.


Any question, please don't hesitate to contact us
