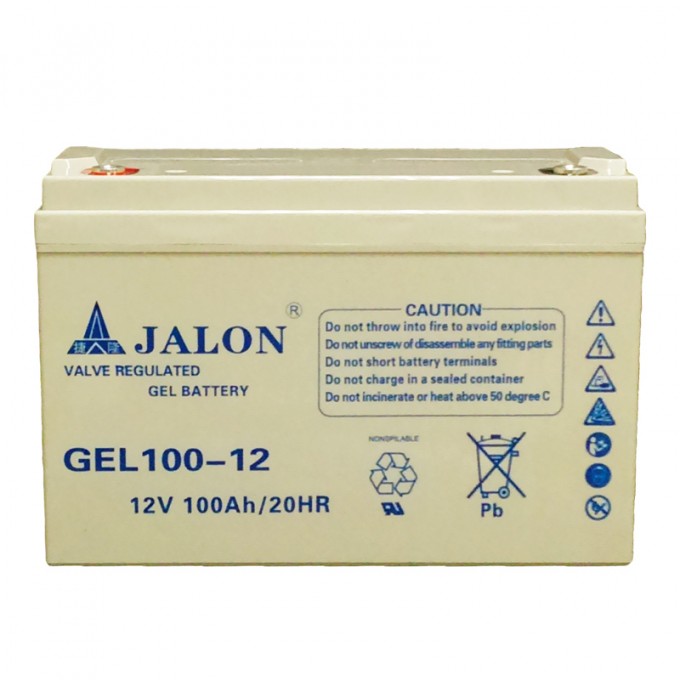

High Quality Gel UPS Battery 12V100ah

MORE DETAILS

Model: GEL100-12
Size: 329*172*238mm
Weight :25.5 kg
Color :beige, dark gray
Warranty: 3 years
Delivery time :7-15 days
Designed Service life: 6-8 years
Brand: Jalon, OEM Acceptable
Certificate: CE, ISO, SGS, UL

SPECIFICATIONS
NominalVoltage		12 V
Rated Capacity (10 hour rate)		100 AH
Dimensions (Length*Width*Height )/mm		329*172*238mm
Weight Approx		25.5 kg
CHARACTERIESTICS
Internal Resistance	Fully charged battery at 25° C		8 mΩ
Capacity affected by temperature (20 hour rate)	40° C 25° C 0° C -15° C		102% 100% 85% 65%
Self-Discharge At 25° C	Capacity after 3 month storage Capacity after 6 month storage Capacity after 12 month storage		91% 82% 64%
Terminal Type	T9 or T16
Charge (Constant Voltage)	Cycle use	Initial Charging Current less than 16 A Voltage 14.40~15.00V
	Float use	Voltage 13.50~13.80V

PACKING DETAIL

1PCS/CTN, Cartons with wooden pallet






BATTERY FEATURES

- Sealed and maintenance free operation battery
- Non-Spillable construction design.
- ABS Containers and Covers (UL94HB), UL94V-0 optional.
- Safety valve installation for explosion proof.
- High quality and high reliability.
- Exceptional deep discharge recovery performance.
- Low self discharge characteristic.
- Flexibility design for multiple install positions.
- No memory effec
- CE certificate
- Wide operating temperature range


BATTERY APPLICATION


-Solar energy system
-Ups inverter system
- wind energy system
-Garden light and street light system
-Portable VTR/TV, tape recorders, radios, etc.
-Power tools, lawn mowers and vacuum cleaners
-Cameras and photographic equipment
-Computers etc.
-Portable measuring equipment
-Portable telephone sets
-Various power toys and recreational equipment
-Lighting equipment
-Uninterruptible Power Supply
-Communications and electric equipment
-Emergency lighting equipment
-Fire alarms and security systems
-Various telemeter equipment



CHARACTERISTICS

1. Excellent safety performance:
No electrolyte leakage, battery swelling and cracking

2. Excellent discharging performance:
With smooth discharging voltage and mild discharging

3.Good shock-proof performance:
The fully charged and completely fixed battery, with 4mm amplitude and 16.7Hz frequency do have a normal open circuit voltage without leakage, batteries swelling or cracking problem after one-hour vibration.

4. Good impact-proof performance:
The fully charged battery is proved to maintian normal open circuit voltage and be without leakage or batteries swelling or cracking after droping three times from 20cm height naturally to a 1 cm-thick hardwood board.

5. Good resistance to overdischarge:
In temperature of 25 degrees Celsius, the fully charged battery discharges with fixed resistance which is equivalent to the one required by 1 CA discharge of the battery for three weeks, and it can restore capacity over 75%.

6. Good resistance to overcharge:
The fully charged battery is proved to maintian normal open circuit voltage and be without leakage or batteries swelling or cracking in temperature of 25 degrees Celsius after chargeing at 0.1 CA for 48 hours, and the capacity maintian over 95%.

7. Good resistance to high current:
The fully charged battery is proved to be without conductive part melted or any appearance deformation after discharging at 2 CA for 5 minutes or 10 CA for 5 seconds.




WHY CHOSE US

1. As a specialized manufacturer
We possess our own lead-plate production line, which is the core technology for Lead Acid Battery. Most important, we adopt advanced green formation technology, which can greatly decrease the effect to the environment comparing to the tank formation technology. With high tin ratio inside the lead plate, we can greatly increase the battery life cycle.

2. As a qualified supplier in the world
We possess the following certificate
ISO9001--Issued by SGS, ISO14001--Issued by SGS, OHSAS 18001, CE, UL and TLC With completely quality control system and production management system, we do control the product quality and production efficiency very well.



3. As a mid-scale manufacturer in China
As a 200 employees company, we can not only support you with quick delivery but also satisfy you with customized service.

4. As a 17 years history factory
We can support you esteemed company with experienced professional team and reputable market reputation. Any question, please don't hesitate to contact us.






FAQ

1.What kinds of battery will you provide?
We can provide full range of valve regulated lead acid batteries, such as Standard series, Deep Cycle series, Gel series, Front Terminal series and High Rate series. You can check our web for further information-- http://gzjalon-battery.en.made-in-china.com/

2.Where can we use the batteries?
Our batteries can be widely used in UPS and computer standby power supply,
Solar and wind system, Control system, Telecommunication system, Emergency light system, Alarm system, Security system, Firefighting equipment standby power supply, Railway system, Ship equipment, Aeronautical facility, Electric toys, Power tools, Emergency lamp, Medical treatment equipment, Power system,Power station, Standby power supply, Military equipment, Telephone switching system and etc.

3.Can your battery meet CE and UL requirements?
Yes, our battery not only can meet CE and UL, but also ISO9001; ISO1400; COC; TLC.

4.Can we change the color of the battery?
Yes, the color can be customer-made according to your requirement.

5.Can you print my picture or logo on the battery?
Yes, OEM is available, we can print your picture or logo on the battery.

6.What's the warranty?
Below 24AH, 1 year from manufacturing date shown on battery;
Above 24AH, 2 years from manufacturing date shown on battery.
Indeed, our battery products can be used for about 7 to 10 years.

7.What's your hot sell?
Our batteries are sell well all around the world, such as 2V100AH, 2V200AH, 2V400AH, 4V4AH, 6V4AH, 6V7AH, 6V100AH, 12V7AH, 12V24AH, 12V38AH, 12V65AH, 12V100AH, 12V120AH, 12V150AH, 12V200AH and etc.

Any question, please don't hesitate to contact us.
