| Chassis Information |

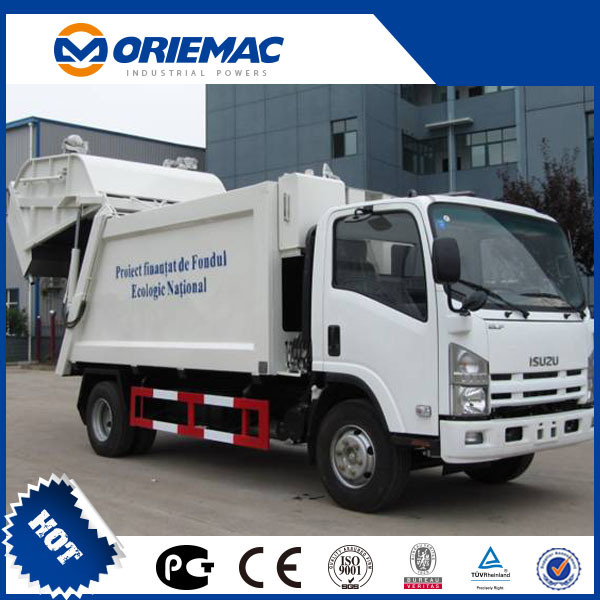

| Chassis brand | ISUZU | DONGFENG | DONGFENG | DONGFENG | DONGFENG |
| Chassis model | QL11109KARY | DFL1120B4 | DFL1160BX5 | DFL1250A11 | DFL1250A11 |
| Drive type | 4×2 | 4×2 | 4×2 | 6×4 | 6×4 |
| Dimension Parameter |
| Overall dimension (L*W*H) (mm) | 7360*2300*2515 | 8250*2450*3250 | 9000*2495*3200 | 9760*2500*3350 | 9760*2500*3350 |
| Front / Rear suspension (mm) | 1110/2025 | 1430/2320 | 1430/2570 | 1460/2350 | 1460/2350 |
| Wheel base (mm) | 3815 | 4500 | 4700 | 4350+1300 | 4350+1300 |
| Wheel No. | 2 | 2 | 2 | 3 | 3 |
| Front/ Rear track (mm) | 1680/1650 | 1880/1860 | 1880/1860 | 1986/1860 | 1986/1860 |
| Weig h t Parameter |
| GVW (kg) | 10900 | 12495 | 16000 | 25000 | 25000 |
| Payload weight (kg) | 4255 | 5000 | 8000 | 10070 | 10070 |
| Kerb weight (kg) | 6480 | 7300 | 7805 | 14800 | 14800 |
| Front / Rear axle (T) | 4T / 7T | 4.5T/9T | 5T/10T | 7T/10T | 7T/10T |
| Engine Parameter |
| Model | 4HK1-TCG40 | ISDe180 40 | ISDe210 40 | ISDe245 40 | ISDe245 40 |
| Manufacturer | Qingling | Dongfeng Cummins | Dongfeng Cummins | Dongfeng Cummins | Dongfeng Cummins |
| Horsepower (hp) | 189 | 180 | 210 | 245 | 245 |
| Displacement / power (ml/kw) | 5193/139 | 4500/132 | 6700/155 | 6700/180 | 6700/180 |
| Emission Standard | Euro IV | Euro IV | Euro IV | Euro IV | Euro IV |
| Transmission |
| Manufacturer | ISUZU | Dongfeng | Dongfeng | Dongfeng | Dongfeng |
| Control type | manual | manual | manual | manual | manual |
| Gear Shift | 6forward and 1reverse speeds | 6forward and 1reverse speeds | 6forward and 1reverse speeds | 8 forward and 1reverse speeds | 8 forward and 1reverse speeds |
| Tyre |
| Type | 235/75R17.5 | 9.00-20 | 10.00R20 | 11.00R20 | 11.00R20 |
| Tyre No. | 6+1 spare tyre | 6+1 spare tyre | 6+1 spare tyre | 10+1 spare tyre | 10+1 spare tyre |
| Leaf spring No. | 8/10+6 | 7/9+6 | 8/10+8 | 8/9 | 8/9 |
| Cab |
| Type | flat roof cab with A/C | flat roof cab with A/C | flat roof cab with A/C | flat roof cab with A/C | flat roof cab with A/C |
| Up-load Special Parameter |
| Volume | 7M 3 | 10 M 3 | 15 M 3 | 18 M 3 | 22 M 3 |
| Cargo material | 16Mn | 16Mn | 16Mn | 16Mn | 16Mn |
| Thickness of the cargo | Side 4mm, bottom 5mm | Side 4mm, bottom 5mm | Side 4mm, bottom 5mm | Side 5mm, bottom 6mm | Side 5mm, bottom 6mm |
| Amount of oil cylinder | Scraper cylinder: 2pcs | Scraper cylinder: 2pcs | Scraper cylinder: 2pcs | Scraper cylinder: 2pcs | Scraper cylinder: 2pcs |
| Slide plate cylinder: 2 pcs | Slide plate cylinder: 2 pcs | Slide plate cylinder: 2 pcs | Slide plate cylinder: 2 pcs | Slide plate cylinder: 2 pcs |
| Hopper cylinder: 2 pcs | Hopper cylinder: 2 pcs | Hopper cylinder: 2 pcs | Hopper cylinder: 2 pcs | Hopper cylinder: 2 pcs |
| Pushing plate cylinder: 1pcs | Pushing plate cylinder: 1pcs | Pushing plate cylinder: 1pcs | Pushing plate cylinder: 1pcs | Pushing plate cylinder: 1pcs |
| Bin lifter cylinder: 2pcs | Bin lifter cylinder: 2pcs | Bin lifter cylinder: 2pcs | Bin lifter cylinder: 2pcs | Bin lifter cylinder: 2pcs |
| Operation system | Electrical system (PLC Auto is optional) | Electrical system (PLC Auto is optional) | Electrical system (PLC Auto is optional) | Electrical system (PLC Auto is optional) | Electrical system (PLC Auto is optional) |
