Brush Electric Bike Scooter Controller 24V250W Lb27

24V 250W New Motor Brush Controller for Electric Bike Bicycle Scooter E-Bike

Brand name	YIYUN
Voltage	24v
Watt	250w
Brush or brushless	brush

Features about Product:
100% Brand New
motor brush controller for Electric bicycle & scooter
rated voltage: dc 24 v
Current limit : 22A
rated power: 250 w
matching motor: dc brushed motor
Under Voltage Protection: 20V

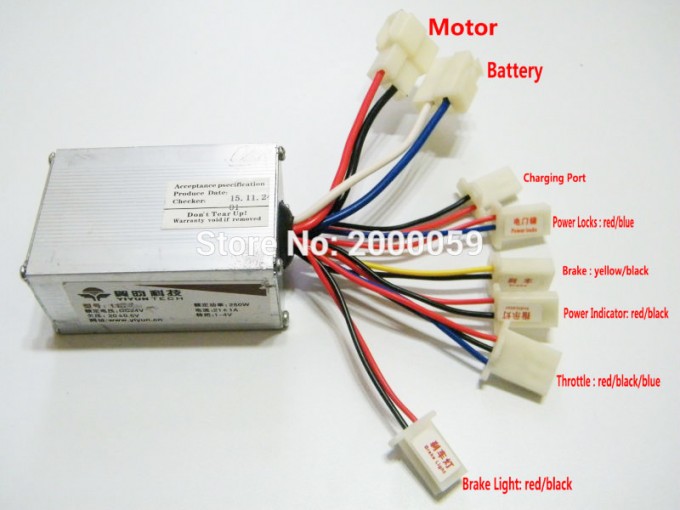

Controller Wires Interface Details:
This controller all wires are labeled so you know very clear each wires is what .
Battery :Thick Black (Power Negative) /Thick Red (Power Positive)
Motor :Thick White (Motor Negative) /Thick Blue (Motor Positive)
Ignition Switch :Thin Red(VCC)/Thin Blue
Indicator : Thin red (Indicator power output) /thin black (indicator negative)
Brake :thin yellow (Brake signal)/thin black(Negative Power)
Speed governor :Thin blue(Speed handlebar Signal input) /Thin black (Negtive Power) /thin red(5V Positive Power)
Charge Port : Thin red (charge input power Positive) /thin black (Power negative)
Brake Light: Thin red (power Positive) /thin black (Power negative)
