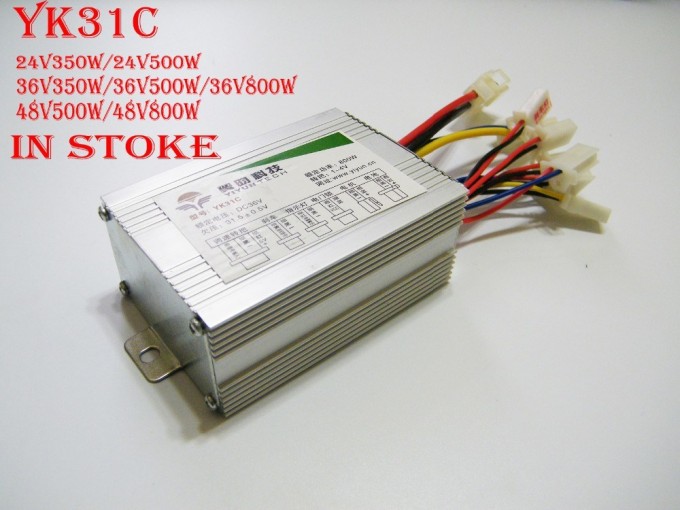

Brush Electric Bike Scooter Controller 24V350W Yk31c

YK31C available types	Under Voltage Protection
YK31C24V350W	24V + - 0.5V
YK31C24V500W	24V + - 0.5V
YK31C36V350W	36V + - 0.5V
YK31C36V500W	36V + - 0.5V
YK31C36V800W	36V + - 0.5V
YK31C48V500W	48V + - 0.5V
YK31C48V800W	48V + - 0.5V

Features Controller:
Brand Name : YIYUN controller
Type : Brush
Dimension: 100MM X 69MM X 38MM
Weight: 350G
Brand: Yiyun
Model: YK31C
Motor brushed controller for Electric bicycle & scooter

Controller Wires Interface Details:
This controller all wires are labeled so you know very clear each wires is what .
Battery :Thick Black (Power Negative) /Thick Red (Power Positive)
Motor :Thick White (Motor Negative) /Thick Blue (Motor Positive)
Ignition Switch :Thin Red(VCC)/Thin Blue
Indicator : Thin red (Indicator power output) /thin black (indicator negative)
Brake :thin yellow (Brake signal)/thin black(Negative Power)
Speed governor :Thin blue(Speed handlebar Signal input) /Thin black (Negtive Power) /thin red(5V Positive Power)
Charge Port : Thin red (charge input power Positive) /thin black (Power negative)
Brake Light: Thin red (power Positive) /thin black (Power negative)
