Detailed Description
16'' Brushless Motor Foldable Folding Electric Bike with Lithium Battery
1. Modle No.&co
lon; TDP002Z
2. Wheel Size&co
lon; 16"
3. f
rame Material&co
lon; A Class Steel
4. Wheelba
se&co
lon; 1060mm
5. Battery Type&co
lon; Lithium-ion battery
6. Voltage of Battery&co
lon; 48V/36V
7. Battery Capacity&co
lon; 48V 8Ah; 48V 10Ah; 36V 10Ah
8. Wattage&co
lon; 240W
9. Motor&co
lon; Brushless High speed Clutch motor
10. Max speed&co
lon; 25~27km/h
11. Charging Time&co
lon; 6~8h
12. Range per Power&co
lon; 45~55km(48V*10Ah)
13. Climbing capacity&co
lon; 10 Degree
14. Weight&co
lon; 30KG(With Battery)
15. Standard loading capaclty&co
lon; 110Kg
16. Color&co
lon; As the Picture
17. External Dimensions&co
lon; 1520mm*580mm*1120mm
12/16inch Shimano Inner 3 speed Model (TDW02ZV) |
Basic Spec. | Unfolded Size(mm) | 1260 × 550 × 1090 |
Folded Size(mm) | 610 × 275 × 810 |
Packing size(mm) | 620×280×835 |
Wheel base | 980mm |
Wheel | 12/16inch wheel with spokes; Aluminum Alloy |
frame | Aluminum and Magnesium Alloy |
Overall Height | 109cm |
Net Weight/Gross Weight | 16kgs(without the battery)/23kgs |
Front Brake | V Brake |
Rear Brake | Special Roller Brake for Shimano |
Transimission | inner 3 speed |
Electric Spec. | Motor | 250w brushless gear motor |
Traction | Front wheel drive |
Battery | Lithium battery; 36V/9AH; 2.4KGS |
Charge Time | 3~5 hours |
Head lamp | LED |
Performance | Max Load | 110kgs |
MAX Speed | 25KM/H |
Range(By Electricity Only) | 30-40KM |
Range(With pedal-operated boost) | 50-60KM |
Color | | |
Packing | | 198pcs/20'GP; 396pcs/40'GP |

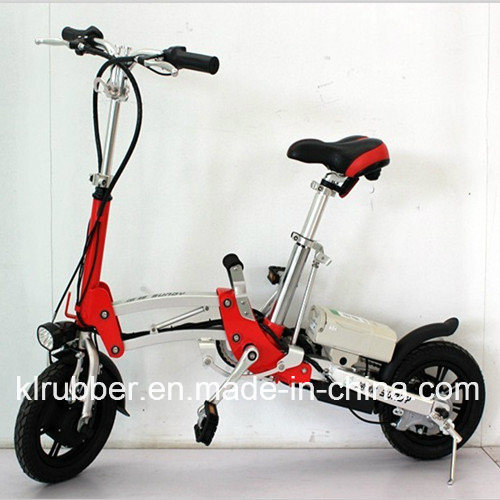

Product Image
