Overview

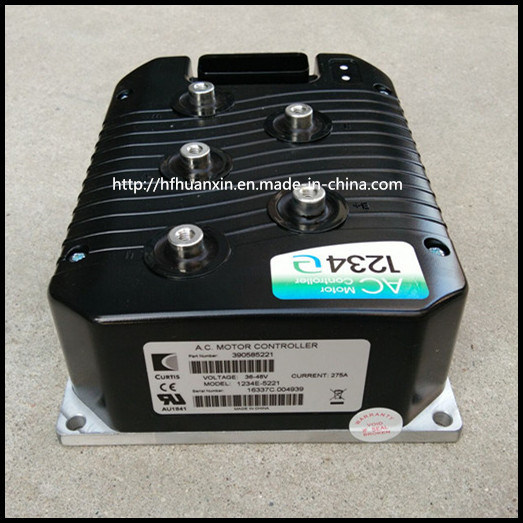

CURTIS Model: 1234-5371
Nominal input voltage: 48V (default setting) or 36V
2 Minute RMS Current Rating (amps): 350
2 Minute RMS Power Rating (kVA): 19.6
MOSFET overtemperature cutback: linear cutback starts at 100°C; complete cutoff at 110°C
MOSFET undertemperature cutback: approx. 50% motor current at -25°C; complete cutoff at -40°C
All low power connections are made through a single 35-pin AMPSEAL connector
Throttle Type: 0-5K Ω (default setting), flexible throttle circuitry accommodates a variety of throttle types: 5kΩ-0, 0-5kΩ, 0-5V, etc.
Operating Ambient Temperature Range: -40°C to 50°C
Internal Heatsink Operating Temperature Range: -40°C to 95°C
Storage Ambient Temperature Range: -40°C to 95°C
Package environmental rating: IP65
Dimensions: L212xW155xH75 mm
Net Weight: 2.84 kg
Meets or Complies with relevant US and International Regulations:
EMC: Designed to the requirements of EN12895
Safety: Designed to the requirements of EN1175
IP65 Rated per IEC 529 UL recognized
Regulatory compliance of the complete vehicle system with the controller installed is the responsibility of the vehicle OEM.
Features Include:
Advanced functionality, compact power
High frequency, silent operation across the 0-300Hz stator frequency range.
Models available for 200-350A output at 24-48V system voltages. These are true 2 minute RMS ratings, not short duration 'boost' ratings.
Powerful operating system allows parallel processing of vehicle control tasks, motor control tasks and user configurable programmable logic.
Advanced Pulse Width Modulation techniques produce low motor harmonics, low torque ripple and minimized heating losses, resulting in high efficiency.
Unmatched Flexibility
Easily programmable through the CURTIS Model 1313-4331 Handheld Programmer or 1314 PC Programming Station.
Programmable for either traction or pump applications.
Field upgradeable software.
Integrated Battery state-of-charge algorithm and hour meter.
Multi-ModeTM provides user-selectable vehicle operating profiles.
Fully-featured generic software and VCL for typical Warehouse Truck applications is included.
Comphensive programming options and VCL allow other applications to be easily supported.
CURTIS hand-held or PC Windows programming tools provide easy programming and powerful system diagnostic tools.
Integrated status LED provides instant diagnostic indication.
Robust Safety and Reliability
Insulated metal Substrate power base provides superior heat transfer for increased reliability.
Fail-Safe power component design.
Redundant hardware watchdog timers.
Reverse polarity protection on battery connections.
Short circuit protection on all output drivers.
Thermal cutback, warning, and automatic shutdown provide protection to motor and controller.
Rugged sealed housing and connectors meet IP65 environmental sealing standards for use in harsh environments.
Specifications:
PWM operating frequency: 15 kHz
Electrical isolation to heatsink (min.): 500 VAC
PWM operating frequency: 10 kHz
Maximum encoder frequency: 15 kHz
Maximum controller output frequency: 300 Hz
Heatsink overtemperature cutoff: linear cutback starts at 85°C; complete cutoff at 95°C
Heatsink undertemperature cutoff: complete cutoff at -40°C
