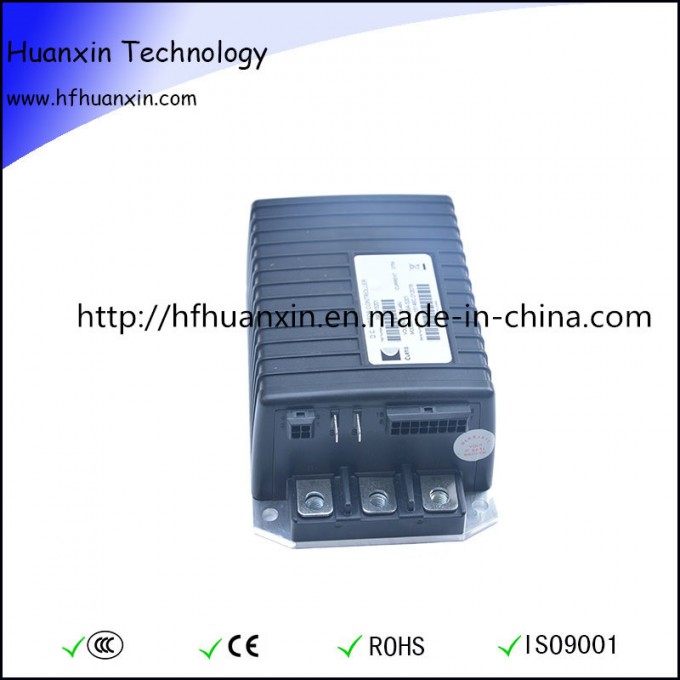

Curtis DC Motor Controller 1266r-5351 350A 36V 48V Auto Parts

Product Description



CURTIS 1266 controllers are separately excited motor speed controllers designed for use in a variety of transport vehicles. These programmable controllers are simple to install, efficient, and cost effective. Typical applications include golf carts and small utility vehicles.The 1266 controller offers smooth, silent, cost effective control of motor speed and torque. The speed sensor input allows superior closed-loop control for regulating vehicle speed. Unique braking parameters allow simple, intuitive deceleration tuning. A full-bridge field winding control stage is combined with a half-bridge armature power stage to provide solid state motor reversing and regenerative braking power without additional relays or contactors.
Key Features:
CURTIS Model: 1266R-5351
Norminal Battery Voltage (Volts): 48V (default setting) or 36V
Amature 2 minute current rating (amps): 350
Field 2 minute current rating (amps): 20
KSI input current (typical):
160 mA without programmer
200 mA with programmer
Logic enable and logic power input voltage (minimum): 16.8 V
Logic enable and logic power input current (no contactors engaged): 160 mA without programmer; 200 mA with programmer
Logic input voltage: 20.0 V High; 7.5 V Low
Logic input current 10 mA
Throttle Type: various throttles can be used with the 1266 controller, including 5kΩ 3-wire potentiometers and 0-5V throttles
Ambient operating temperature range: -40°C to 50°C
Heatsink overtemperature cutback: starts at 85°C; cutoff at 95°C
