This current 1215-8307 DC Series Motor controller is aproduct of aChinese manufacturer. With same dimensions and functions of the original products, this 1215-8307 can also be programmed by CURTIS Model 1313-4401 Handheld Programmer or CURTIS 1314 PC programming station.
We offer 12-month warranty for item sold, counting from the date of delivery.
Key Features:

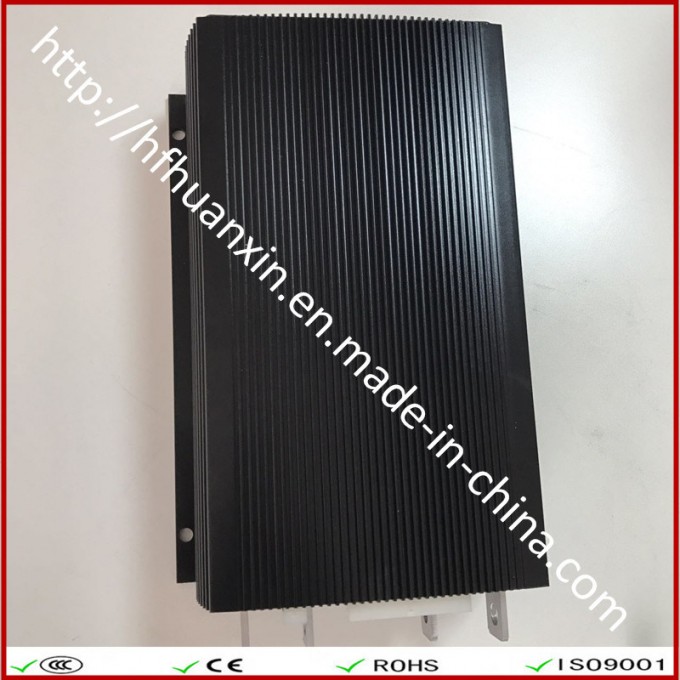

CURTIS Model: 1215-8307Norminal Battery Voltage (Volts): 48V (default setting) or 36V2 Minute Current Rating (amps): 500Under Voltage Cutback (Volts): 21VContactor Voltage (Volts): battery voltagePWM operating frequency: 15 kHzElectrical isolation to heatsink (min.): 500 VACKSI input voltage: 16-45VKSI input current (no contactors engaged):80 mA without programmer130 mA with programmerLogic input current: <2 mAStatus LED output current (max.): <2 mAThrottle Type: 0-5K Ω(default setting), flexible throttle circuitry accommodates avariety of throttle types: 5kΩ-0, 0-5kΩ, 0-5V, 0-10V, inductive, Hall, etc.Ambient Operating Temperature Range: -40°C to 50°CHeatsink Overtemperature Cutback: 85°CHeatsink Undertemperature Cutback: -25°CStorage ambient temperature range: -40°C to 85°CProducts Picture:
FAQ:
Q1. Can Ihave asample order?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A: Samples arrived often need 3-5 days.
Q3. Do you have any MOQ (minimum order quality)limit?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We often ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional.
Q5. How to proceed an order?
A: Initially, let us know your requirements or application. Besides, We quote according to your requirements or our suggestions. Thirdly, customers confirms the samples and places deposit for formal order. Finally, We arrange the production.
Q6. Is it acceptable to print my logo on the product?
A: Yes. Please inform us formally before our product and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer one-year warranty for our products.
Q8: How to deal with the flaw?
A: Our products are produced in strict quality control system and the percent of pass is often maintained over 99.8%.
Contact Information:
Contact: Mary
Hefei Huanxin Technology Development Co,Ltd
http://hfhuanxin.en.alibaba.com
Package &Shipping:
Package: Normally we use the standard exporting packaging. We also can according to clients' request .
Shipping :
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courierwe are co-operating at psent.
2. By Air: Delivery from the Shanghai airport to customers' destination city air port.
3. By Sea: Delivery from the Shanghai sea port .
Company information
Hefei Huanxin Technology DevelopCo., Ltd. has been devoting ourselves to developing and manufacturing and other since 2004. We are located in Hefei, Anhui Province, with convenient transportation access. We employ over 101 -200 People staff members. We have achieved great improvement since our company was founded in 2004. We abide by the motto of First-class quality, Reasonable price, Best service and Professional product support.
