Curtis Programmable Series Excitation DC Brush Series Motor Controller Assemblage Model 1204m-4201 2

CURTIS Programmable Series Excitation DC Brush Series Motor
Controller Assemblage Model 1204M-4201 24V 36V 275A Industrial Truck Parts
Product Description:

Specifications:

full controlling set for 24V or 36V DC Series Motorproposed motor power rate: 2.3 - 3.6 kWfoot pedal accelerator (throttle), p-wired for assemblagesimple plug-in connctors (1204M / 05M Controller Assemblage Connectors' Definition (PDF format))Easy to install (1204M / 05M Controller Assemblage Installation Instruction (PDF format))reinforced carton package, safe for international delivery

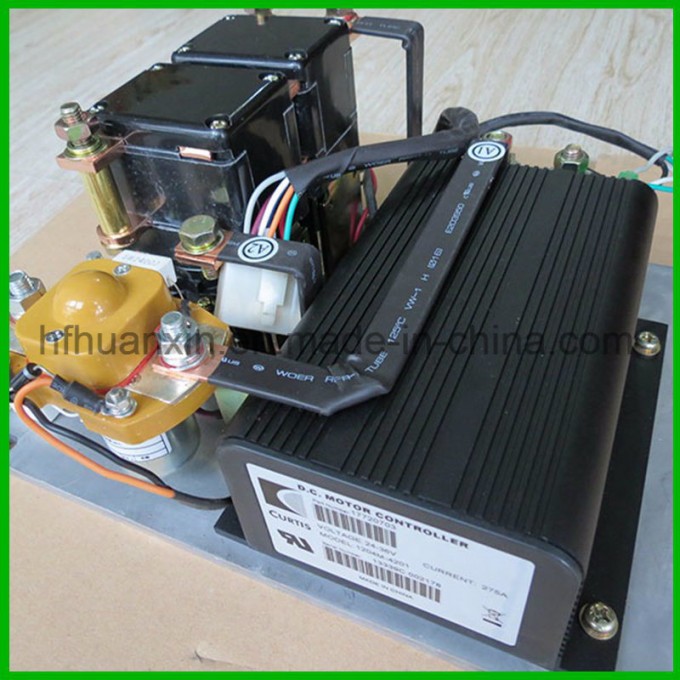

This1204M-4201controller assemblage is a completed electric vehicle DC Series Motorcontrol system, with components mounted on a heat-sink aluminium alloy installation plate. The assemblage includes:

controllermain contactorforward / reverse contactorfuseswiringheat-sink aluminium alloy installation platefoot pedal accelerator (throttle)plug-in connectorsinstallation (bolts, washes and nuts)kit Included

There are small round labels on the assemblage, indicating the wire connecting points: B+, B-, A1, A2, D1 (F1 or S1) and D2 (F2 or S2).

Overview:

CURTIS 1204M programmable series motor controllers are designed to provide smooth, silent, cost-effective control of motor speed and torque. 1204M controllers are updated versions of the popular 1204 controllers, with the added functionality of being programmable-via theCURTIS Model1313-4331 Handheld Programmeror1314 PC Programming Station. This means the controllers can be tailored to the needs of specific applications. In addition to configuration flexibility, use of the programmer offers diagnostic and test capability.

CURTIS 1204M controllers are the ideal solution for a variety of electric vehicle applications, including industrial trucks, personnel carriers, material handing vehicles, golf cars, etc.

For more informaion of J5 terminal and the Rev Input / Main Driver functions, please see the page 7 and 8 of1204M / 1205M controller manual (PDF format).

KEY FEATURES:

CURTIS Model:1204M-4201Norminal Battery Voltage (Volts): 36V (default setting) or 24V2 Minute Current Rating (amps): 2755Minute Current Rating(amps): 2001 Hour Current Rating (amps): 125Plug Braking (A2 Busbar): YesAssemblage Net Weight: 7.9 kgPackage Weight: 10.5 kg (including the foot pedal throttle)

Features include:

High-frequency switching and ultra-low voltage drops provide high efficiency and silent operation.Simple mounting and wiring with push-on connectors for control signals and plated solid copper buses for power connections.Compatible with either a two-wire potentiometer or a voltage throttle.Throttle fault protection circuitry disables controller if throttle wires become open.High pedal disable feature pvents controller operation if key is turned on while throttle is applied.Plug braking diode internal to controller.Thermal protection and compensation circuit provides constant current limit over operating range and during under/over temperature cutback; no sudden loss of power under any thermal conditions.Undervoltage cutback function protects against low battery voltage, including low voltage caused by external loads.Easily programmable through theCURTIS Model1313-4331 Handheld Programmeror1314 PC Programming Station.Rugged anodized aluminum extruded housing meets IP65 environmental sealing standards for use in harsh environments.
