Product Description
Overview

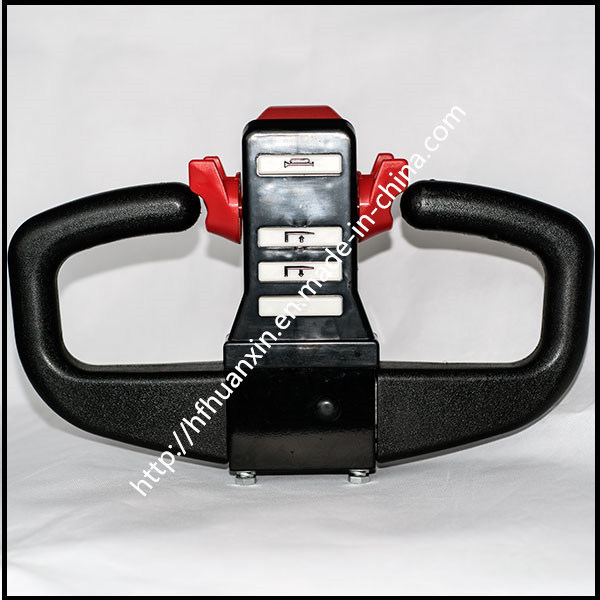

The tiller head CH-1 is a general purpose control device, developed for material handling vehicles. Packaged in a rugged housing that offer an attractive and practical method of controlling 24-48V electric vehicles.
Application:
Equipped with an emergency reverse switch, electronic throttle, and lift and lower switches, CH-1 is ideal for both indoor and outdoor vehicles such as pallet jacks, walkies, stackers and tow tractors.
Characteristics:
Input voltage: 24-48V DC
Throttle output: 0-5V
Max. Current (lift, lower and horn switches): 5A
Max. Current (forward and reverse switches): 1.5A
Specifications:
Model: CH-1
Operating Voltage: 24-48V DC nominal
Throttle Output: 0 - 5V DC nominal (ET-126 MCU electric throttle)
Maximum current (lift, lower and horn switches: 5A
Maximum current (forward and reverse switches): 1.5A
