Product Description
Overview
Specifications:
The foot pedal could be installed at both ends of rotating shaft
Signal output: 0-5KΩ ± 0.1KΩ (BI potentiometer P270-033B)
Solid metal case, ingress protection: IP55
Installation kit is included: bolts, nuts and washes
Mating connector is included
Net weight: 1.20 kg (with installation kit and mating connector)
Key Features:

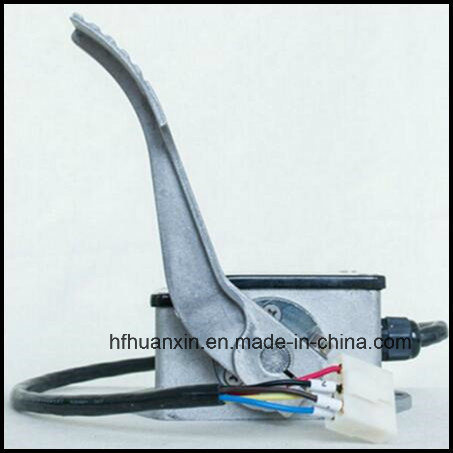

Model: EFP-005 (3-wire potentiometer throttle, working with CURTIS 1204M-4201 Series Motor Controller, CURTIS 1268-5403 SepEx Motor Controller and other controllers)
Signal output: 0-5KΩ ± 0.1KΩ (BI potentiometer P270-033B)
Switch on/off signal: 0V - power supply voltage
Operation temperature range: -55ºC -120ºC
Storage temperature range: -40°C - 80°C
Ingress protection: IP55
Mechnical lifespan: 1,000,000 times
Installation kit is included: bolts, nuts and washes
Mating connector is included
