ngfeng EQ153 water tank truckParameter Declaration >>
| Dongfeng EQ153 water tank truckTechnical Parameters |
| Product: | Dongfeng EQ153 water tank truck | Overall dimension: | 8100×2470×3000(mm) |
| Chassis model: | EQ1141KJ | Compartment dimension: | ××(mm) |
| Gross weight: | 14800(kg) | Approach angle/Departure angle: | 15/14(°) |
| Rated payload: | 7000(kg) | Front/rear suspension: | 1205/2395(mm) |
| Kerb weight: | 7605(kg) | Max speed: | 85(km/h) |
| Engine: | ISBE185 30 ISDe180 30 ISDe185 30 ISDe210 30 B190 30 |
| Displacement: | 5900 4500 6700 6700 5900(ml) | Power: | 136 132 136 155 140(kw) |
| Manufacturer: | Dongfeng Cummins Engine Co., Ltd./Dongfeng Cummins Engine Co., Ltd./Dongfeng Cummins Engine Co., Ltd./Dongfeng Cummins Engine Co., Ltd./Dongfeng Cummins Engine Co., Ltd. |
| Emission standard: | GB3847-2005,GB17691-2005 Euro 3 |
| Axle nos: | 2 | Front tread: | 1940(mm) |
| Wheelbase: | 4500(mm) | Rear tread: | 1860(mm) |
| Tyre nos: | 6 | Tyre specification: | 10.00-20,10.00R20 |
| Fuel type: | Diesel | Leaf spring nos: | 8/10+8 |
| Axle load: | 5300/9500 | Passenger nos | 3 |
| Remarks: | Tank dimension(length×longer axis×shorter axis)(mm): 4600×2300×1330;Tank volume:10.0 m3 |
| More pictures: | |
| Please contact us if you want more product information, we are ready to provide service for you |

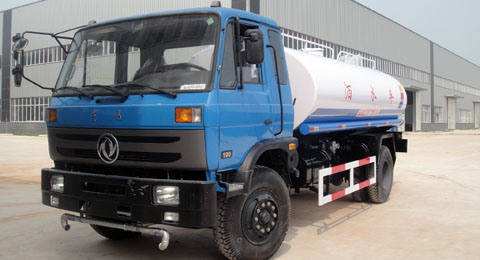

Product Image
