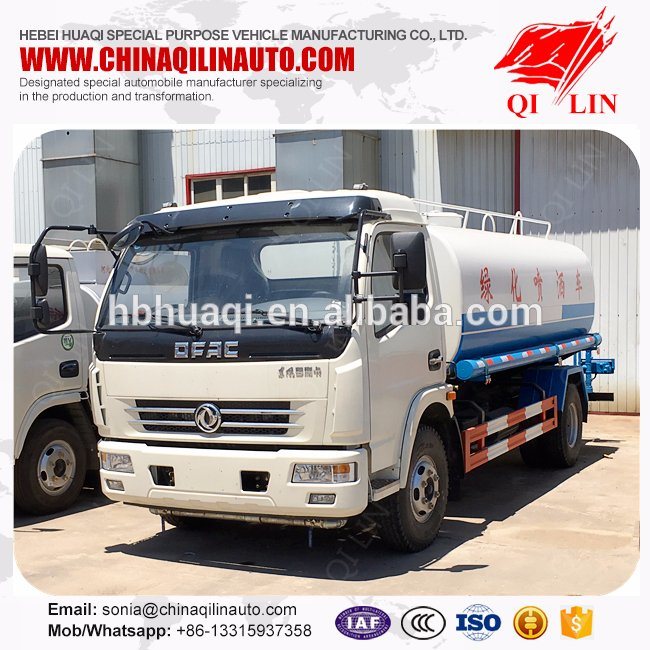

Euro IV Truck Tank Water for Regar Con Cisterna Acero De Buena Calidada Dongfeng
| Vehicle specifications |
| Brand | Qi Lin |
| Model | QLG5163GSS |
| Overall dimension | 7200mmX2300mmX2500mm |
| Gross weight | 13000kg |
| Curb weight | 4000kg |
| Tank specifications |
| Tank volume | 10cbm |
| Compartment | Single |
| Tank material | Q235b carbon steel |
| Tank body | 5mm thickness |
| Seal head | 5mm thickness |
| Clapboard | 5mm thickness |
| Ball valve | 2.5 inch |
| Manhole | 1pc standard |
| Sprinkle water pump | 45 type |
| Water sprinkling form | Front spray,rear sprinkle,with upper sprinkler gun. |
| Water pssure | 0.4mpa |
| Chassis specifications |
| Chassis brand | Dongfeng/JAC/FAW(optional) |
| Drive type | Left/right hand drive optional |
| Drive wheel | 4X2 |
| Transmission | Manual,5speedforwardwith1reverse |
| Axle | 2pcs |
| Tire | 8.25R20/7pcs((include 1 spare tire) |
| Cab | 2 or 3 passengers |
| Front/rear tread | 1750mm/1586mm |
| Front/rear suspension | 1180mm/1920mm |
| Wheelbase | 3800mm |
| Approach/departure angle | 22°/15° |
| Leaf spring number | 8/10+7 |
| Engine | Commins/Yuchai/Chaochai(optional) |
| Emission | Euro 2/3/4 |
| Horse power | 150hp |
| Braking system | With ABSsystem |
| Maxspeed | 90Km/h |
| Fuel type | Diesel |
| Electrical system | 24 voltage,7 wire harness. |
| Light | LED type |
| Painting | With shot blasting and 4 layers painting,color is optional. |
| Remark | The above mentioned data is for your reference only.
The detailed specification will be subject to our final /confirm/iation. |
Packaging &Shipping
1.Nude,polish with water wax before shipment.
2.40HQ ,Ro-Ro ship andbulkshiptransport.
Our Service
* When the semi-trailer psents a manufacturer's defect, our engineers will psent help for you.
* Semi-trailers and their accessories will be sent to you as soon as possible.
* Lifelong technical consultation.
Company Information
1.Hebei Huaqi Special Purpose Vehicle Manufacturing Co., Ltd. was established in 1956,with more than 60 years experiences of making trailers.
2.We have more than 300 employees,including 24 technical engineers and 18 senior engineers .
3.We are one of the biggest manufacturers in China. We have got ISO9001:2008,CCC Natio
nal Compulsory Certificate.
4. "Qi Lin" is afamous brand in Hebei province, China.
Welcometo visit our factory !1. We can pick you up in the airports.
2. We'll reserve the hotel for you.
3. Show youaround the workshop and production line.
4. We can supply the truck parts.
5. We can supply the stocked trucks if you need the trucks urgently.
FAQ
1. Can I have a trailer sample to test the quality?
Yes, you can buy any sample to test the quality, our starting unit is 1 unit.
2. How much can the delivery time be reduced?
It depends on the order. The delivery time is usually within 20 business days after receive your ppayment. If you have a big order, the price can benefit.
3. Can you provide some trailer parts?
Yes, we can provide trailer accessories such as traction, traction pin, balance beam and semi-trailer spring, suspension accessories, turntable, all kinds of trailer brakes, brake discs, bearings and so on.
4. What is the payment method?
TT 30% as deposit, the rest settled before shipment.
5. Do you have any used trailers for sale?
We have a lot of trailers in store from 2012 ton 2016, the price is economical.
6. How can ensure the delivery after customer's ppayment?
Don't worry. We've joined Alibaba's trade guarantee. If we do not provide trailers, the deposit will be returned.
7. How can ensure the quality?
Don't worry. We have joined Alibaba's trade guarantee. If the product psents quality defects, customer will get compensation.
