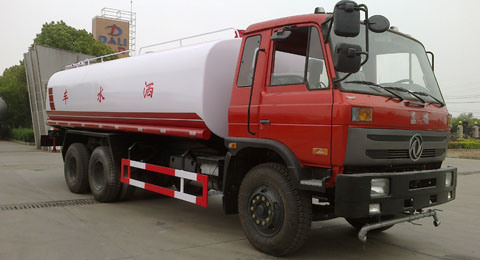

| Dongfeng double rear axle water tank truckTechnical Parameters |
| Product: | Dongfeng double rear axle water tank truck | Overall dimension: | 9800,10200×2500×3000(mm) |
| Chassis model: | EQ5253GFJ2 | Compartment dimension: | (mm) |
| Gross weight: | 24700(kg) | Approach angle/Departure angle: | 27/13,27/13(°) |
| Rated payload: | 13000(kg) | Front/rear suspension: | 1245/2905,1245/2905(mm) |
| Kerb weight: | 11505(kg) | Max speed: | 80(km/h) |
| Engine: | ISDe210 30/B220 30/YC6A240-31 |
| Displacement: | 6700/5900/7255(ml) | Power: | 155/162/177(kw) |
| Manufacturer: | Dongfeng Cummins Engine Co., Ltd/Dongfeng Cummins Engine Co., Ltd/Guangxi Yuchai Co., Ltd. |
| Emission standard: | GB3847-2005,GB17691-2005 Euro 3 |
| Axle nos: | 3 | Front tread: | 1940(mm) |
| Wheelbase: | 4350+1300,4750+1300(mm) | Rear tread: | 1860/1860(mm) |
| Tyre nos: | 10 | Tyre specification: | 10.00-20,10.00R20 |
| Fuel type: | Diesel | Leaf spring nos: | 9/10 |
| Axle load: | 4350+1300,4750+1300 | Passenger nos | 3 |
| Remarks: | Tank volume: 13.6 m3, tank dimension(length×longer axis×shorter axis)(mm): 6600×2170×1420. Overall sizes are different because of different wheelbase. Length/wheelbase/rear suspension/departure angle: 9800/4350+1300/2905/13,10200/4750+1300/2905/13. |
| More pictures: | |
| Please contact us if you want more product information, we are ready to provide service for you |
