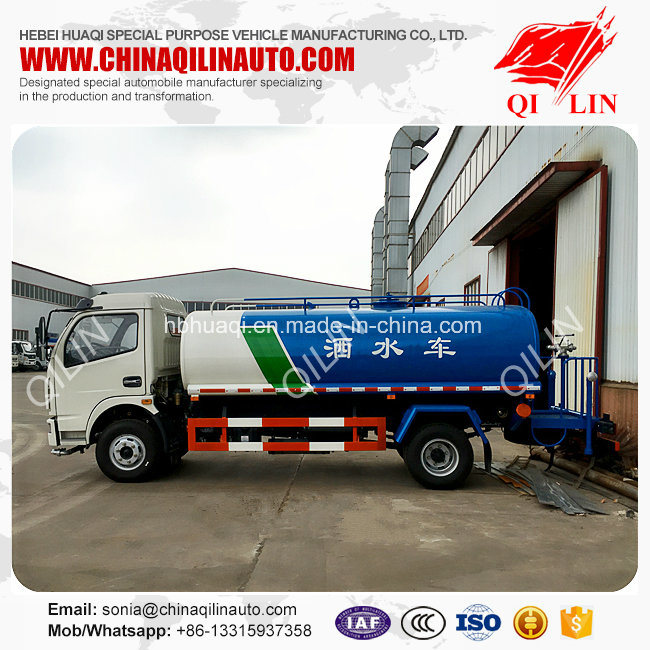

Carbon Steel 2500-3000 US Gallon Water Tank Truck for Sale
| Vehicle specifications |
| Brand | QI LIN |
| Model | QLG5165GSS |
| Overall dimension | 6995mmX2300mmX2510mm |
| Gross weight | 11495kg |
| Curb weight | 4295kg |
| Max payload | 7005kg |
| Tank specifications |
| Tank volume | 7.35cbm |
| Tank dimension | 4300mmX2030mmX1260mm |
| Compartment | Single |
| Tank body | 4mm thickness |
| Seal head | 4mm thickness |
| Clapboard | 4mm thickness |
| Ball valve | 2.5 inch |
| Manhole | 1pc standard |
| Sprinkle water pump | 45 type |
| Water sprinkling form | Front spray,rear sprinkle,with upper sprinkler gun. |
| Water pssure | 0.4mpa |
| Chassis specifications |
| Chassis brand | Dongfeng |
| Drive type | Left hand drive |
| Drive wheel | 4X2 |
| Transmission | Manual,5 forward gears,1 backward gear |
| Front/rear axle payload | 4825kg/6670kg |
| Tire | 8.25-20 16PR/6pcs |
| Front/rear tread | 1760mm/1670mm |
| Front/rear suspension | 1250mm/1945mm |
| Wheelbase | 3800mm |
| Approach/departure angle | 22°/12° |
| Leaf spring number | 8/11+8 |
| Engine brand | Chaochai |
| Horse power | 143hp |
| Displacement | 3856ml |
| Braking system | With ABS system |
| Max speed | 90Km/h |
| Fuel type | Diesel |
| Electrical system | 24 voltage,7 wire harness,LED lights. |
| Painting | With shot blasting and 4layers painting,color is optional. |
| Remark |
| 1.The above mentioned data is for your reference only. |
| 2.The detailed specification will be subject to our final /confirm/iation. |
Packaging &Shipping
1.Nude,polish with water wax before shipment.
2.40HQ,Ro-Ro ship and bulk ship transport.
Our services
1.Our engineer will go to your side when the tanker truck goes something wrong.
2.Any parts of the tanker truck will be send to you as soon as possible.
3.Technology co
nsulting are appciated all the time.
Company Introduction
1.Hebei Huaqi Special Purpose Vehicle Manufacturing Co., Ltd. was established in 1956,with more than 60 years trailer making experiences.
2.We have more than 300 employees,including 24 technical engineers,18 senior engineers.
3.We are one of the largest manufacturers in China,we have passed ISO9001:2008,CCC,SGS,UL certificates.
4."Qi Lin" Brand is afamous brand in Hebei province,China.
Welcome you to visit our factory!
1.We can pick up you in the airport port;
2.Book the hotel for you;
3.Show you around the workshop and production line;
4.We can supply the truck parts;
5.We can supply the stock trucks if you need the trucks urgently.
FAQ
1. Can Ihave samples of this type of trailer to test the quality?
Yes, you can buy any sample to test the quality,our MOQ is 1unit.
2. What's the delivery time and can you lower the price?
It depends on your order. The delivery time is within 15 workdays after we received your ppayment. If you have place an order of large quantities, then ,of course, the price can be lowered.
3. Can you supply some quick-wear trailer parts?
Yes, we can supplythe trailer parts as your request,such as traction, traction pin, balance beam and semi-trailer plate spring, hanging accessories, turntable, all kinds of trailer brake pads, brake pan, bearings, etc
4. What's the payment method?
TT 30% as deposit, balance before shipment by TT or L/C at sight.
5.Do you have any used trailer for sale?
We have many trailers in stock for choices, from 2012-2016 year, the price are favorable,we'll show you our stock trailer if you need.
6. How to guarantee customers get the goods smoothly after they pay?
Don't worry, dear. We joined the trade assurance,you can place the order by trade assurance,if we don't delivery products, the deposit will be returned to you.
7. How can you ensure the quality of the products?
Don't worry, dear. We joined the trade assurance,if the products have quality problem when you received the goods, you can get the advance payments.
